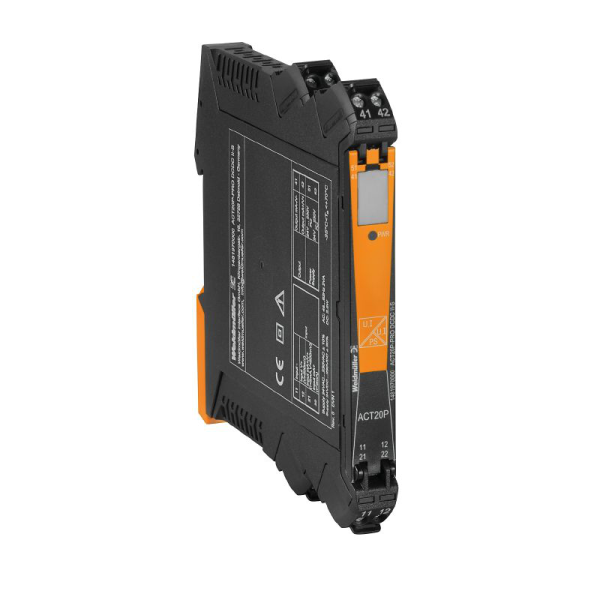

ACT20P-PRO DCDC II-S

Specifications: Universal input/output: current or voltage (selectable). Power supply: 24–230 V AC/DC (galvanically isolated). Configuration: DIP switch or via LED display and pushbuttons. Display: Green dot-matrix with ticker text. Isolation: 3-way (input/output/supply). Mounting: TS 35 DIN rail. Protection class: IP20. Weight and Dimensions: Width: 12.5 mm. Height: 119.2 mm. Depth: 113.7 mm. Net weight: 130 g. Environmental Conditions: Operating temperature: -20°C to +60°C. Storage temperature: -40°C to +85°C. Humidity: 0–95% (non-condensing). Operating altitude: ≤ 2000 m. Electrical Characteristics: Input voltage range: ±40 mV to ±300 V. Input current range: ±0.1 mA to +100 mA. Output voltage: 0 to +10 V (adjustable). Output current: 0 to +20 mA (configurable). Output type: Active (source) or passive (sink). Load impedance (voltage): ≥ 1 kΩ. Load impedance (current): ≤ 600 Ω. Accuracy: <0.05% of measuring range. Step response time: ≤ 50 µs. Cut-off frequency: >10 kHz / <10 Hz. Power consumption: ≤ 2.3 W. Temperature coefficient: ≤ 0.01% of measuring range. Safety and Compliance: Rated voltage: 600 V. Impulse withstand voltage: 5 kV. EMC standard: EN 61326-1. Surge category: II. Pollution degree: 2. RoHS compliant with exemptions (7a, 7cI). REACH SVHC: Lead (7439-92-1). SIL: Not applicable. MTBF: 76 years. Connection Details: Type: Screw connection. Clamping range: 0.5–2.5 mm². AWG range: 26–12. Torque: 0.4–0.6 Nm.
