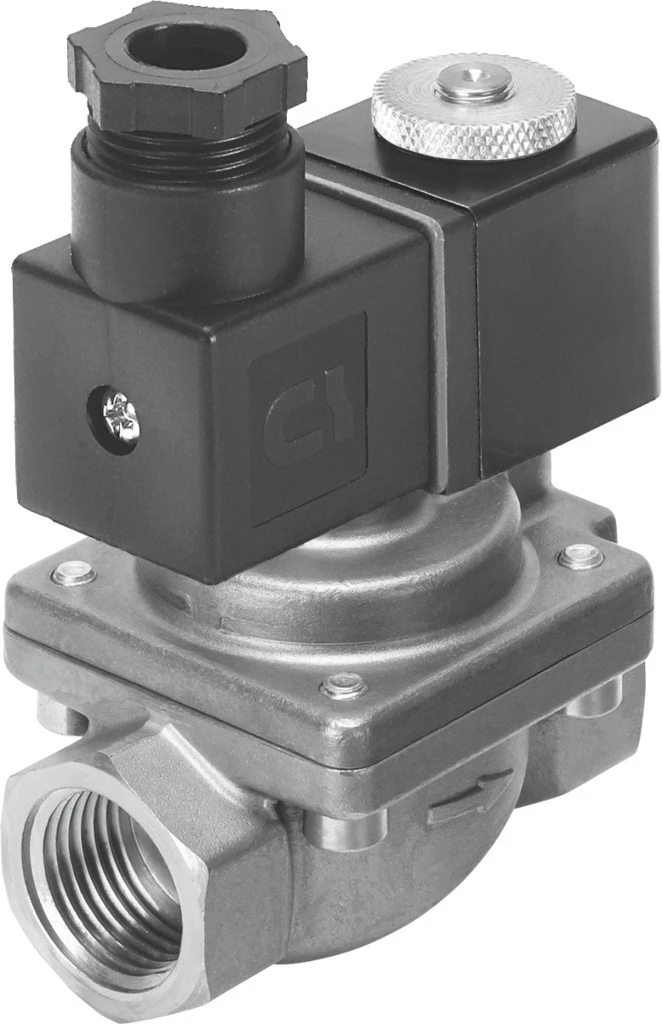

Solenoid valve, VZWP-L-M22C-G12-130-2AP4-40
SKU: 1489952
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VZWP, servo-controlled
• Design Piloted piston poppet valve
• Type of actuation Electric
• Sealing principle Soft
• Mounting position Coil on top (preferred)
• Type of mounting In-line installation
• Connection Process valve G1/2
• Electrical connection Type A, Plugs, To EN 175301-803, Square design
• Nominal size 13 mm
• Valve function 2/2-way, closed, monostable
• Manual override None
• Flow direction Non-reversible
• Medium Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Neutral fluids, Other media on request
• Nominal pressure PN 40
• Flow rate Kv 2.5 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VZWP
• The solenoid valve VZWP is ideal for controlling gaseous and liquid media with high pressures and high flow rates.
• For all applications with a differential pressure of min. 0.5 bar
• For high pressures and high flow rates with relatively small solenoids
• For controlling gaseous and liquid media in open circuits
