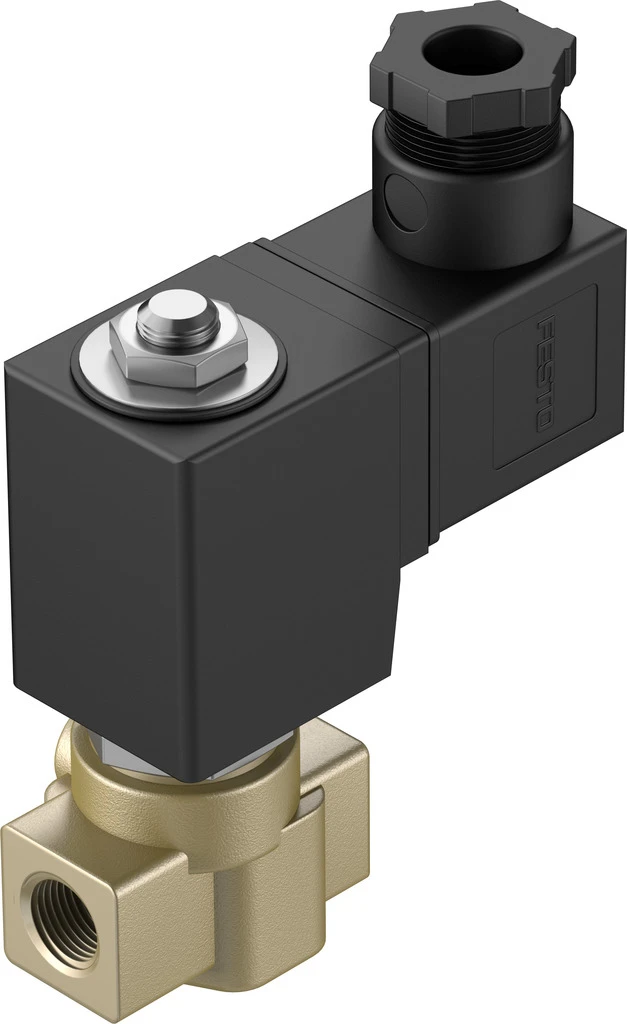

Solenoid valve, VZWD-L-M22C-M-G18-30-V-1P4-15
SKU: 1491836
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VZWD, directly actuated
• Design Directly actuated poppet valve
• Flow rate Kv 0.2 m³/h
• Connection Process valve G1/8
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Electrical connection Type A, Plugs, To EN 175301-803, Square design
• Nominal size 3 mm
• Valve function 2/2-way, closed, monostable
• Manual override None
• Flow direction Non-reversible
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VZWD, directly actuated
• Suitable for applications with high pressure and low flow rates
• Operating pressure 0 ... 90 bar
• Process valve PN 50 nominal pressure
• Flow rate Kv 0.06 … 0.4 m3 /h
• Solenoid actuation
