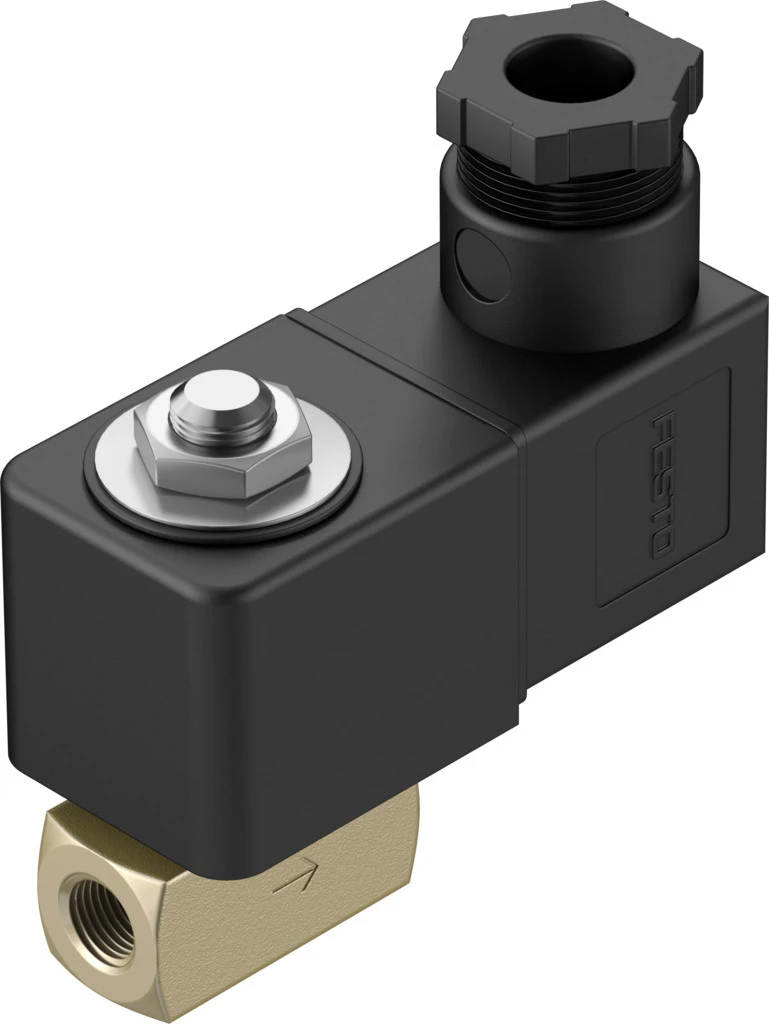

Solenoid valve, VZWD-L-M22C-M-N18-50-V-2AP4-5
SKU: 1491955
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VZWD, directly actuated, NPT, Brass housing, nominal pressure PN 100
• Design Directly actuated poppet valve
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Connection Process valve 1/8 NPT
• Electrical connection Type A, Plugs, To EN 175301-803, Square design
• Nominal size 5 mm
• Valve function 2/2-way, closed, monostable
• Manual override None
• Flow direction Non-reversible
• Medium Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Mineral oil, Water, Neutral fluids, Other media on request
• Flow rate Kv 0.35 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VZWD
• Excellent for high-pressure and dosing applications with low flow rates: The directly controlled solenoid valve VZWD works without differential pressure up to 90 bar, even in closed media circuits. It is therefore optimal for high-pressure and metering applications.
• Extensive pressure range
• Directly actuated poppet valve
• No differential pressure required
• Can also be used in vacuum technology
