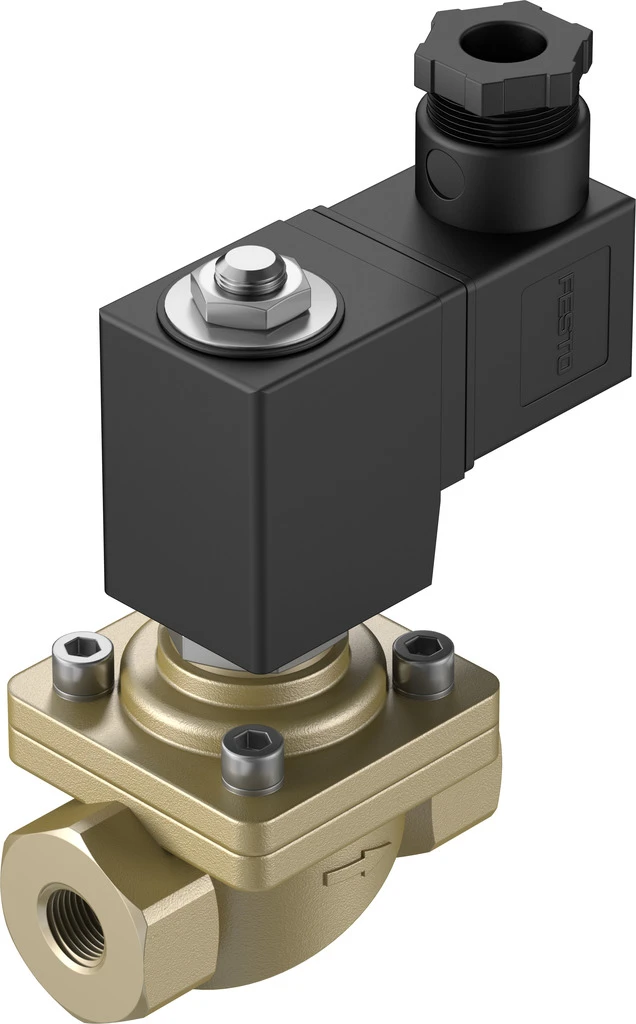

Solenoid valve, VZWF-B-L-M22C-G14-135-1P4-10
SKU: 1492110
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VZWF, force pilot operated
• Design Diaphragm valve - Force pilot operated
• Flow rate Kv 1.8 m³/h
• Connection Process valve G1/4
• Type of actuation Electric
• Sealing principle Soft
• Mounting position Solenoid vertical
• Type of mounting In-line installation
• Electrical connection Type A, Plugs, To EN 175301-803, Square design
• Nominal size 13.5 mm
• Valve function 2/2-way, closed, monostable
• Manual override None
• Flow direction Non-reversible
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valves VZWF, force pilot operated
• Suitable for closed applications such as cooling or filling systems
• For control of gaseous and liquid media
• Medium pressure 0 bar or higher
• Process valve PN 40 nominal pressure
• Solenoid actuation
