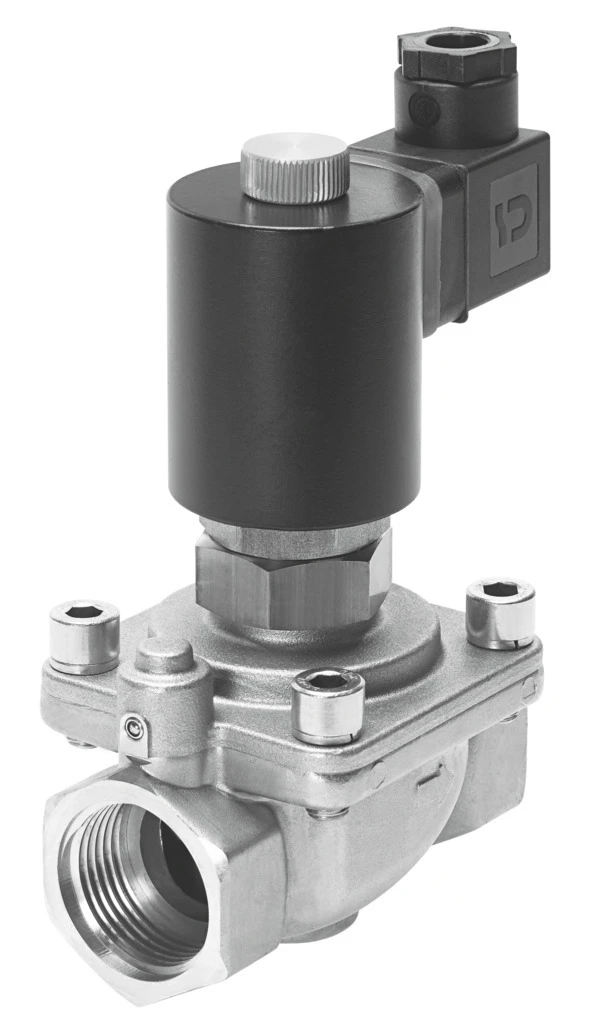

Solenoid valve, VZWF-L-M22C-N2-500-E-2AP4-6-R1
SKU: 1492285
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VZWF, force pilot operated, Stainless steel casting housing, NPT
• Design Diaphragm valve, Force pilot operated
• Type of actuation Electric
• Sealing principle Soft
• Mounting position Solenoid vertical
• Type of mounting In-line installation
• Connection Process valve 2 NPT
• Electrical connection Type A, Plugs, To EN 175301-803, Square design
• Nominal size 50 mm
• Valve function 2/2-way, closed, monostable
• Manual override None
• Flow direction Non-reversible
• Medium Compressed air to ISO 8573-1:2010 [7:-:-], Inert gases, Mineral oil, Water, Neutral fluids, Other media on request
• Nominal pressure PN 40
• Flow rate Kv 28 m³/h
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VZWF
• The force pilot operated pneumatic valves VZWF control high pressures with high nominal diameters using relatively small solenoids, even in closed media circuits with no differential pressure.
• High flow rates
• Large nominal diameters with relatively small solenoids
• No differential pressure required
• Can also be used in vacuum technology
