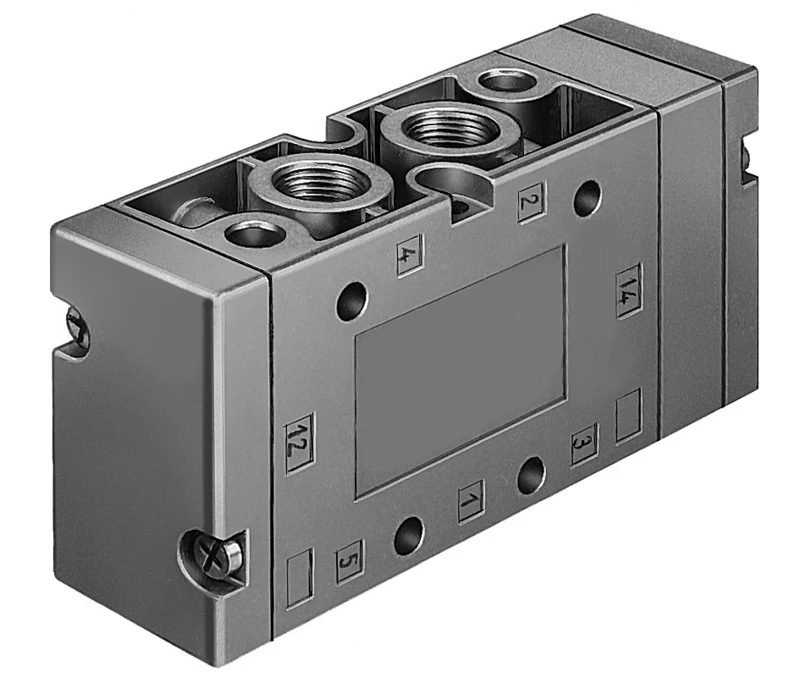

Pneumatic valve, VL-5-3/8-B

Specifications • Pneumatic valves VL, Tiger 2000 • Valve function 5/2-way, monostable • Type of actuation Pneumatic • Construction width 40 mm • Standard nominal flow rate (standardised to DIN 1343) 2000 l/min • Pneumatic working port G3/8 • Operating pressure -0.09 MPa ... 1 MPa • Operating pressure -0.9 bar ... 10 bar • Design Piston gate valve • Type of reset Mechanical spring • Nominal size 12 mm • Grid dimension 41 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
