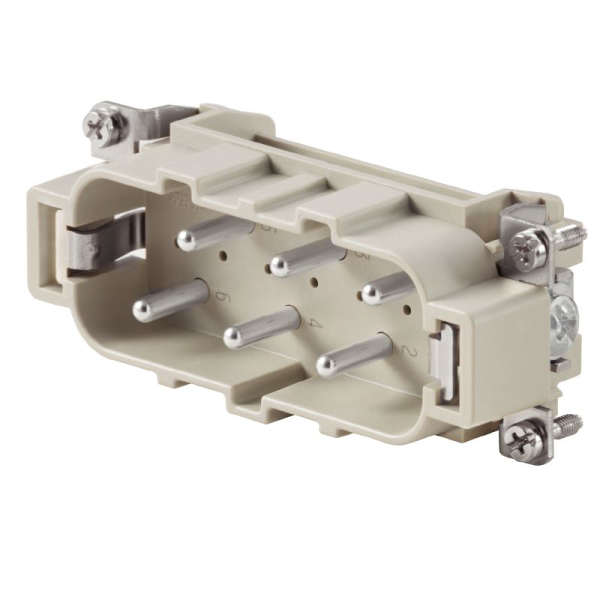

HDC HSB 6 MS

Specifications dimensions and weights: Depth: 84.5 mm. Depth (inches): 3.327 inch. Height: 34 mm. Height (inches): 1.339 inch. Width: 34 mm. Width (inches): 1.339 inch. Net weight: 82 g. Temperatures: Limit temperature: -40 °C... 125 °C. Environmental Product Compliance: REACH SVHC: Lead 7439-92-1, Potassium perfluoro butane sulfonate 29420-49-3. SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f. Chemical resistance: Substance: Acetone. Chemical resistance: Resistant. Substance: Ammonia, watery. Chemical resistance: Conditionally resistant. Substance: Petrol. Chemical resistance: Resistant. Substance: Benzene. Chemical resistance: Resistant. Substance: Diesel oil. Chemical resistance: Conditionally resistant. Substance: Acetic acid, concentrated. Chemical resistance: Resistant. Substance: Potassium hydroxide. Chemical resistance: Conditionally resistant. Substance: Methanol. Chemical resistance: Conditionally resistant. Substance: Motor oil. Chemical resistance: Conditionally resistant. Substance: Lye, diluted. Chemical resistance: Resistant. Substance: Hydrochlorofluorocarbons. Chemical resistance: Conditionally resistant. Substance: Outdoor use. Chemical resistance: Conditionally resistant. eshop_Filter_00_General: Weidmüller class short: Contact. Weidmüller class target channel: Contact insert (industry plug-in connectors). eshop_Filter_01_02_Connectors: Category: Miscellaneous. Product type: Insert. Dimensions: Height of plug: 34 mm. Total length base: 84.5 mm. Width: 34 mm. General data: BG: 6. Colour: beige. Conductor cross-section: 6 mm². Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified). Insulating material group: IIIa. Insulation strength: 1010 Ω. Low smoke acc. DIN EN 45545-2: Yes. Material: Copper alloy. Max. torque for main contact: 1.5 Nm. Min. torque for main contact: 1.2 Nm. Number of poles: 6. Plugging cycles, silver: ≥ 500. Pollution severity: 3. Rated current (DIN EN 61984): 35 A. Rated impulse voltage (DIN EN 61984): 6 kV. Rated voltage (DIN EN 61984): 400 V. Rated voltage according to UL/CSA: 600 V AC/DC. Series: HSB. Size: 6. Surface finish: Silver passivated. Type: Male. Type of connection: Screw connection. UL 94 flammability rating: V-0. Volume resistance: ≤2 mΩ. Connection data PE: Blade size, slotted (PE connection): 1 x 5.5. Connection type PE: Screw connection. Fixing screw: M 5. Rated cross-section: 6 mm². Stripping length PE connection: 10 mm. Tightening torque, max. PE connection: 2.5 Nm. Tightening torque, min. PE connection: 2 Nm. Wire cross section, AWG (PE), max.: AWG 10. Wire cross section, AWG (PE), min.: AWG 20. Version: BG: 6. Blade size: size PZ1. Blade size, slotted (screw connection): SD 0.8 x 4.0. Clamping screw: M 4. Conductor cross-section, max.: 6 mm². Conductor cross-section, min.: 0.5 mm². Material: Copper alloy. Max. torque for main contact: 1.5 Nm. Min. torque for main contact: 1.2 Nm. Size: 6. Stripping length, rated connection: 11 mm. Surface finish: Silver passivated. Type of connection: Screw connection. Volume resistance: ≤2 mΩ. Wire connection cross section AWG, max.: AWG 10. Wire connection cross section AWG, min.: AWG 20. Wire connection cross section, finely stranded, max.: 6 mm². Wire connection cross section, finely stranded, min.: 0.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 6 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm². Wire cross-section, solid, max.: 6 mm². Wire cross-section, solid, min.: 0.5 mm².
