Linear drive unit, SLE-25- -KF-A
SKU: 150092
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear drive units SLE
• Stroke 10 mm ... 320 mm
• Piston diameter 25 mm
• Operating mode, drive unit Yoke
• Cushioning Shock absorber, hard characteristic curve
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Guidance
• Position detection Via proximity switch, Via inductive sensors
• Operating pressure 0.25 MPa ... 1 MPa
• Operating pressure 2.5 bar ... 10 bar
• Mode of operation Double-acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.

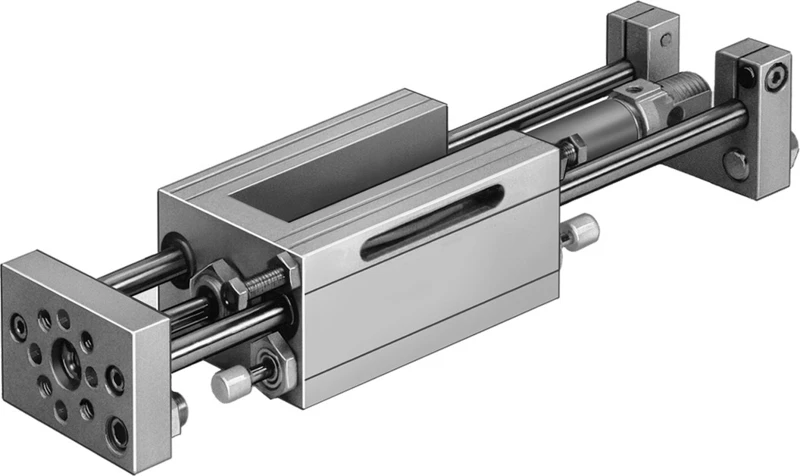

Linear drive unit SLE
• For the direct connection of two units: Combination of guide unit and standards-based cylinder with mounting interface.
• Combination of guide unit and standards-based cylinder
• Multi-axis and drive combinations
• Recirculating ball bearing guide
