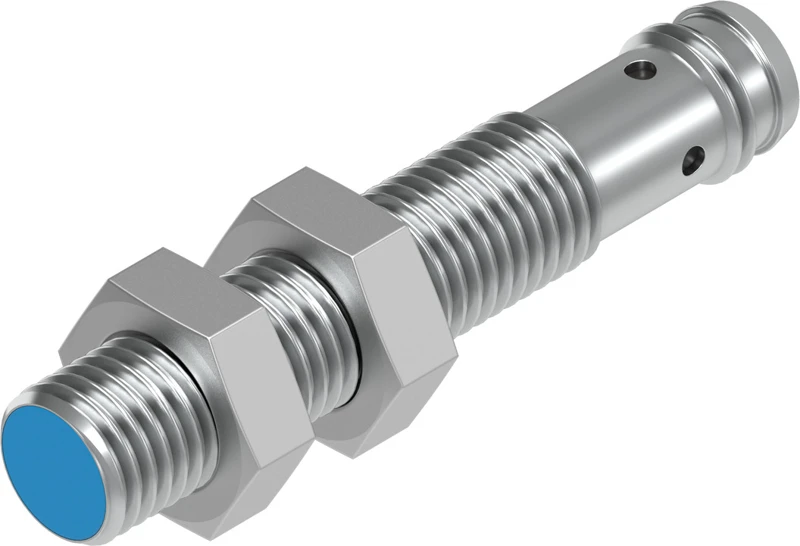

Semi-rotary drives DRVS, Accessories, SIEN-M8B-PS-S-L

Specifications • Semi-rotary drives DRVS, double-acting • Accessories, Proximity sensor • Conforms to standard EN 60947-5-2 • Symbol 00991701 • Approval RCM trademark, c UL us listed (OL) • CE mark (see declaration of conformity) To EU EMC Directive • Note on materials RoHS-compliant • Rated operating distance 1.5 mm • Assured operating distance 1.21 mm • Reduction factors Aluminium = 0.25, Stainless steel St 18/8 = 0.7,l Copper = 0.2, Brass = 0.35, Steel St 37 = 1.0 • Ambient temperature -25 °C ... 70 °C
