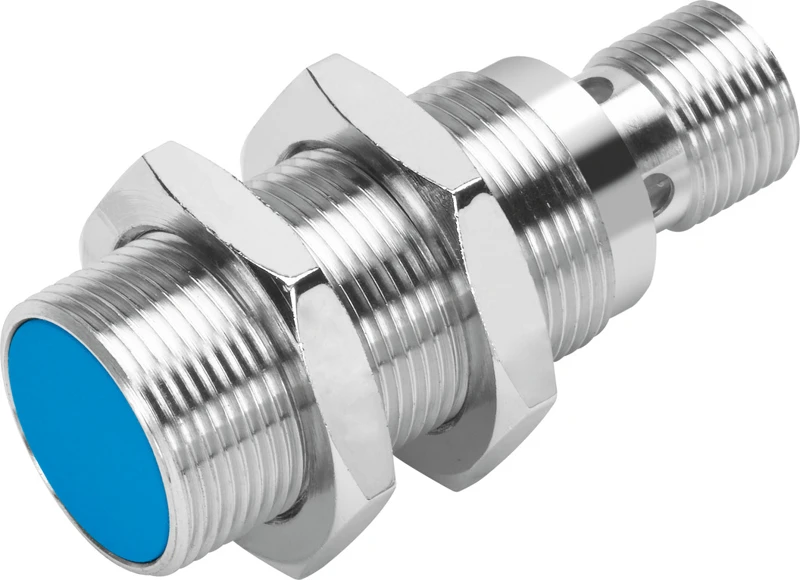

Proximity sensor, SIEN-M18B-NO-S-L

Specifications • Proximity switches SIEN, inductive, Standard switching distance, basic version • Size M18x1 • Electrical connection 3-pin - M12x1 - Plugs • Operational voltage range DC 10 V - 30 V • Conforms to standard EN 60947-5-2 • Symbol 00992831 • Approval RCM trademark, c UL us listed (OL) • CE mark To EU EMC Directive • Note on materials RoHS-compliant • Rated operating distance 5 mm • Assured operating distance 4.05 mm • Reduction factors Aluminium = 0.4, Stainless steel St 18/8 = 0.8, Copper = 0.4, Brass = 0.5, Steel St 37 = 1.0 • Ambient temperature -25 °C ... 70 °C • Repetition accuracy 0.25 mm • Switching output NPN • Switching element function N/C contact
