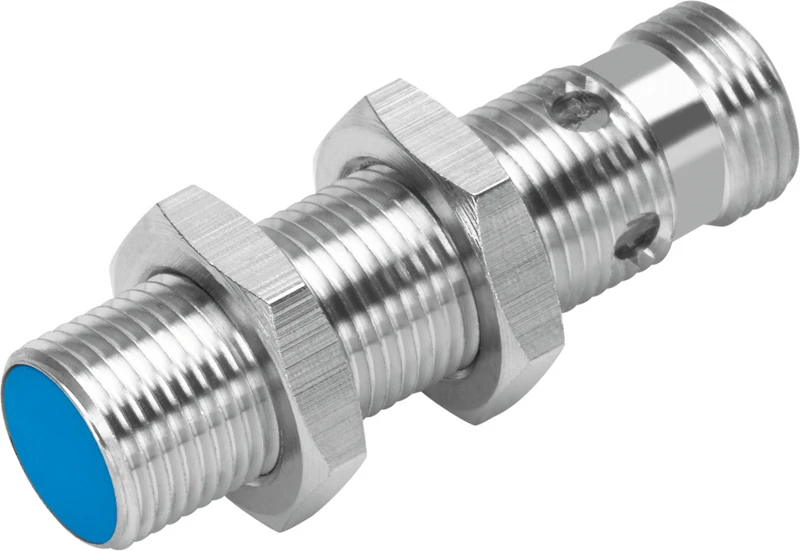

Proximity sensor, SIEH-M12B-NS-S-L

Specifications • Proximity switches SIEH, inductive • Size M12 • Switching output NPN • Switching element function N/O contact • Electrical connection 3-pin - M12x1 - Plugs • Operational voltage range DC 10 V - 30 V • Conforms to standard EN 60947-5-2 • Symbol 00991703 • Approval C-Tick, c UL us listed (OL) • CE mark To EU EMC Directive • Rated operating distance 4 mm • Assured operating distance 3.24 mm • Reduction factors Aluminium = 0.4, StainlSuction cup complete, ESS steel St 18/8 = 0.8, Copper = 0.4, Brass = 0.5, Steel St 37 = 1.0 • Ambient temperature -25 °C ... 70 °C • Repetition accuracy with constant conditions 0.2 mm
