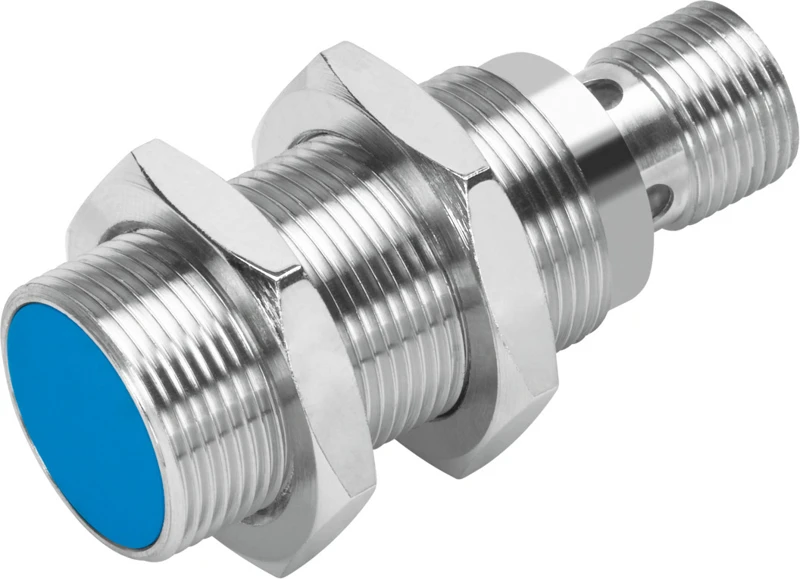

Proximity sensor, SIEH-M18B-PO-S-L

Specifications • Proximity switches SIEH, inductive • Size M18 • Switching output PNP • Switching element function N/C contact • Electrical connection 3-pin - M12x1 - Plugs • Operational voltage range DC 10 V - 30 V • Conforms to standard EN 60947-5-2 • Symbol 00992830 • Approval RCM trademark, c UL us listed (OL) • CE mark To EU EMC Directive • Note on materials RoHS-compliant • Rated operating distance 8 mm • Assured operating distance 6.48 mm • Reduction factors Aluminium = 0.35, StainlSuction cup complete, ESS steel St 18/8 = 0.7, Copper = 0.3, Brass = 0.4, Steel St 37 = 1.0 • Ambient temperature -25 °C ... 70 °C • Repetition accuracy 0.4 mm
