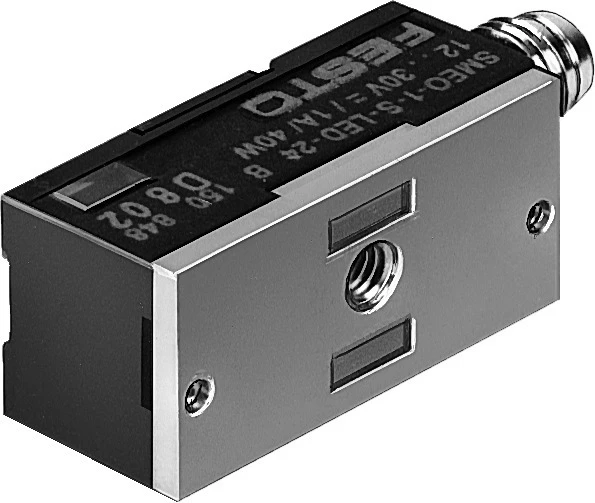

Proximity sensor, SMEO-1-S-24-B
SKU: 150847
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proximity switch SMEO-1
• Design Block design
• Measured variable Position
• Measuring principle Magnetic reed
• Ambient temperature -20 °C ... 70 °C
• Repetition accuracy 0.2 mm
• Switching output Contacting, bipolar
• Switching element function N/O contact
• Switch-on time ≤0.5 ms
• Max. switching frequency 500 Hz
• Max. output current 1000 mA
• Max. switching capacity AC 27 VA
• Max. switching capacity DC 27 W
• Operational voltage range DC 0 V - 30 V
Buy currently uses Select Automation shop pricing and checkout.
Proximity switch SMEO-1
• Attachable magnetic reed cylinder sensor in block design.
• Measuring principle: magnetic reed
• SMEO-1-S6: heat-resistant design
• With or without LED switching status indication
• Cable length 2.5, 5 m
