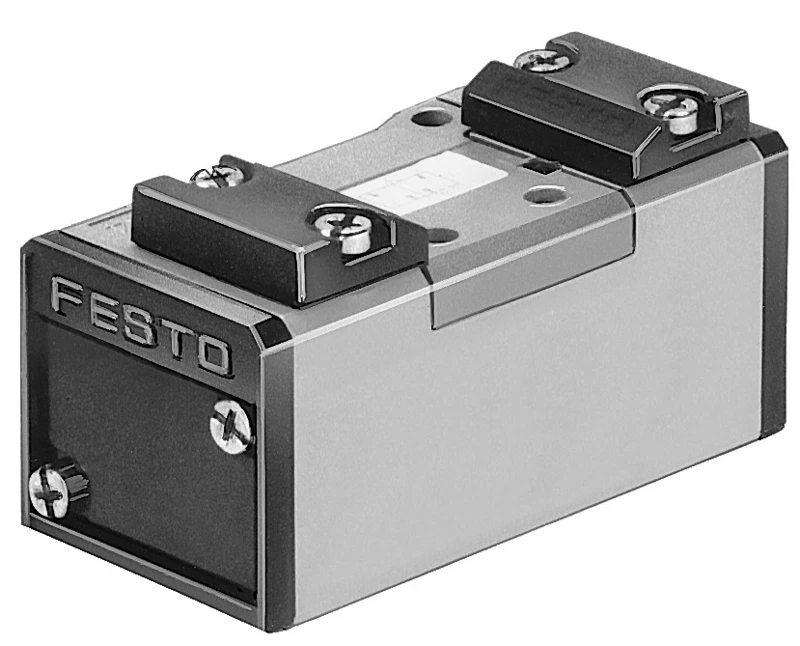

Pneumatic valve, JD-5/2-D-1-C

Specifications • Standards-based valves to ISO 5599-1, pneumatic valves • Valve function 5/2-way, bistable, dominant • Type of actuation Pneumatic • Construction width 42 mm • Standard nominal flow rate (standardised to DIN 1343) 1200 l/min • Pneumatic working port Sub-base size 1 to ISO 5599-1, G1/4 • Operating pressure -0.09 MPa ... 1.6 MPa • Operating pressure -0.9 bar ... 16 bar • Design Piston gate valve • Approval UL - Recognized (OL) • Nominal size 8 mm • Grid dimension 43 mm • Exhaust-air function With flow control option
