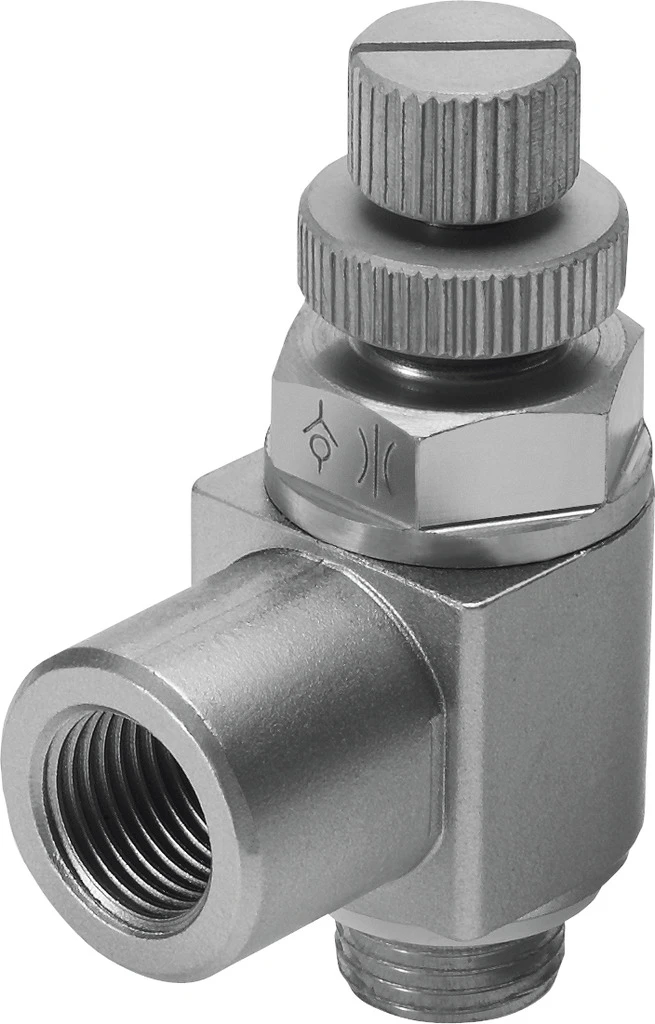

      Twin-piston semi-rotary drives DRRD, double-acting, Accessories, GRLA-1/8-RS-B

      SKU: 151169

      Out of stock

      Availability: Out of Stock

      Short Description
      Specifications • Twin-piston semi-rotary drives DRRD, double-acting • Accessories, One-way flow control valve • Valve function Exhaust air one-way flow control function • Pneumatic connection, port 1 G1/8 • Pneumatic connection, port 2 G1/8 • Adjustment component Knurled screw • Type of mounting Screw-in • Standard nominal flow rate in flow control direction 340 l/min • Standard nominal flow rate in blocked direction 260 l/min ... 420 l/min • Ambient temperature -10 °C ... 60 °C
      151169
      Alternative image 1
      Twin-piston semi-rotary drives DRRD, double-acting • Extremely accurate in the end positions • Very high load-bearing capacity • Very good axial run-out at the flanged shaft • Very high mass moments of inertia • Selected types in accordance with ATEX directive for potentially explosive atmospheres
