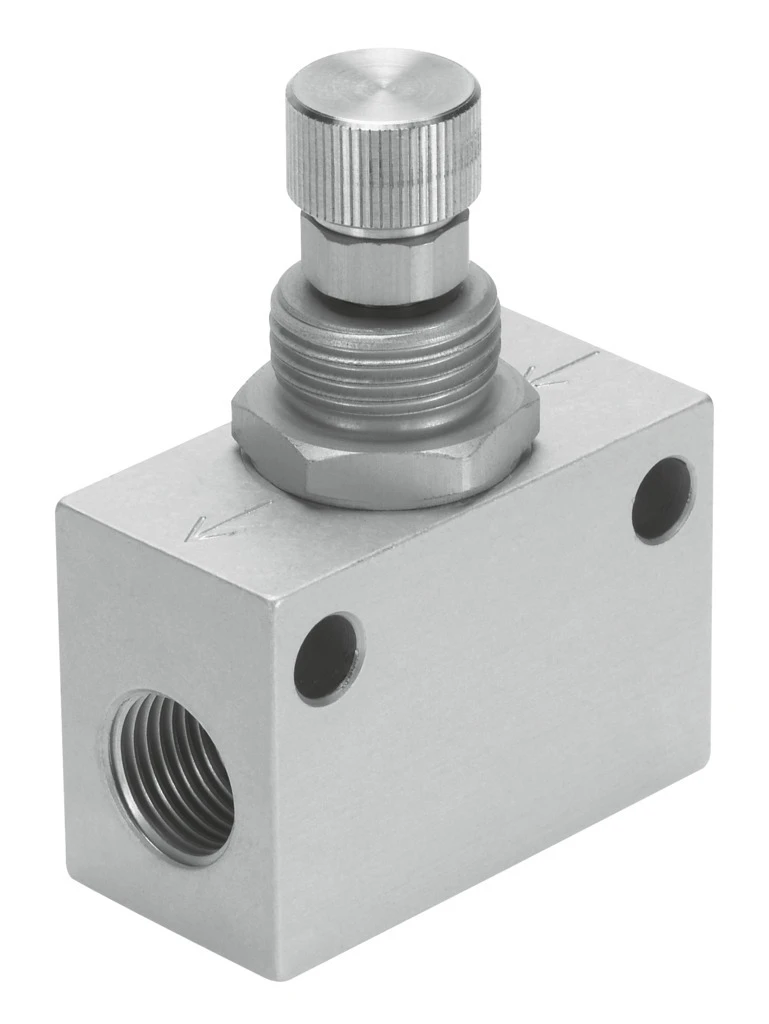

One-way flow control valve, GR-1/8-B

Specifications • One-way flow control valve, in-line installation GR • Valve function One-way flow control function • Pneumatic connection, port 1 G1/8 • Pneumatic connection, port 2 G1/8 • Adjustment component Knurled screw • Type of mounting Either: Front panel mounting, With through-hole • Standard nominal flow rate in flow control direction 210 l/min • Standard nominal flow rate in blocked direction 180 l/min ... 275 l/min • Operating pressure 0.5 bar ... 10 bar • Ambient temperature -20 °C ... 60 °C • Material housing Wrought aluminium alloy • Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
