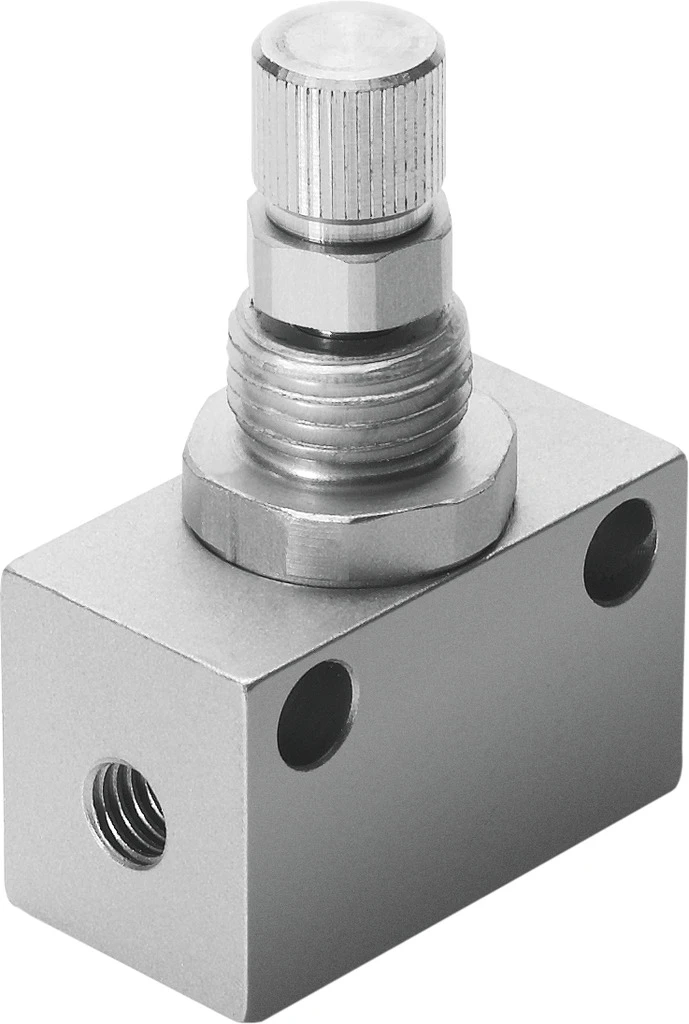

Throttle valve, GRO-1/8-B
SKU: 151216
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Throttle valve
• Valve function Flow control function
• Pneumatic connection, port 1 G1/8
• Pneumatic connection, port 2 G1/8
• Adjustment component Knurled screw
• Type of mounting Either: Front panel mounting, With through-hole
• Standard nominal flow rate in flow control direction 210 l/min
• Operating pressure 0 bar ... 10 bar
• Ambient temperature -20 °C ... 60 °C
• Material housing Wrought aluminium alloy
Buy currently uses Select Automation shop pricing and checkout.
Throttle valve, in-line installation GRO
• Bidirectional flow valve in sturdy polymer design for in-line installation.
• Flow control valve, flow control at both ends
• In-line flow control valve
• Connections: push-in connector at both ends
• Connections: in-line, Y-shape
• Polymer design
