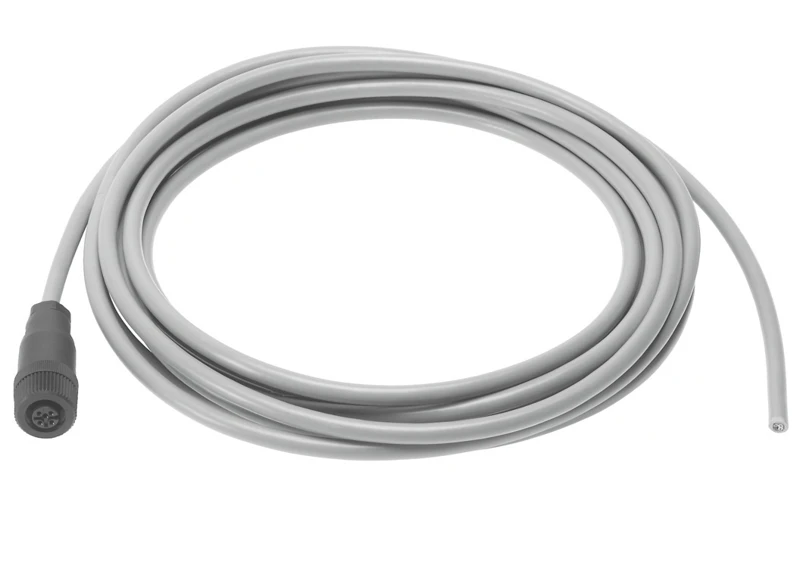

Plug socket with cable, KMPYE-5
SKU: 151909
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional directional control valve MPYE
• Accessories, Connecting cable, 5 m
• Conforms to standard EN 61076-2-101
• Cable designation With accessories
• Product weight 305 g
• Electrical connection 1, function Field device side
• Electrical connection 1, design Round
• Electrical connection 1, connection type Socket
• Electrical connection 1, cable outlet Straight
• Electrical connection 2, function Controller side
• Electrical connection 2, connection type Cable
• Electrical connection 2, connector system Open end
• Electrical connection 2, number of connections/cores 4
• Electrical connection 2, used connections/cores 4
• Operational voltage range DC 0 V ... 30 V
Buy currently uses Select Automation shop pricing and checkout.
Connecting cable KMPYE
• For solenoid coils with thread M12x1 A-coded according to EN 61076-2-101
• For connecting proportional directional control valves MPYE with end-position controller SPC11
• Cable length 0.3 ... 5 m
• With PVC or PUR cable
• Ambient temperature -25 ... +80 °C
