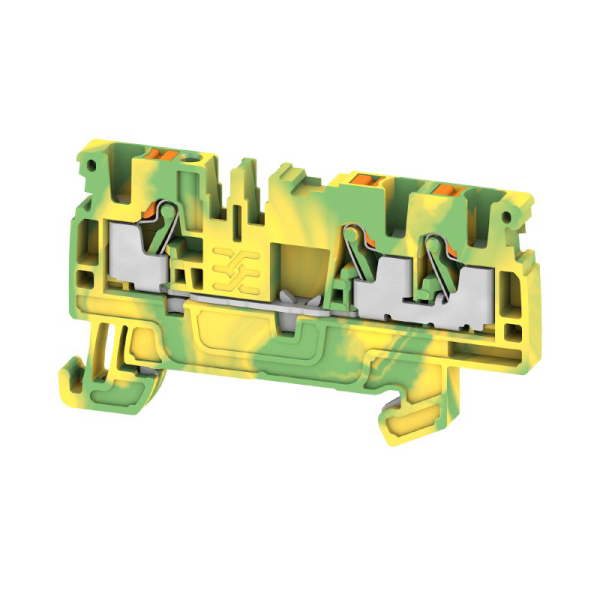

A3C 2.5 PE
SKU: 1521670000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A protective feed through terminal block is a safety conductor that is used in a variety of applications.
PE terminal blocks are used to connect copper wires to the mounting support plate, both electrically and mechanically.
They have one or more contact points for connecting and/or bifurcating protecting earth conductors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
General Features:
Type: Protective earth (PE) terminal block.
Connection method: PUSH IN.
Rated cross-section: 2.5 mm².
Colour: Green/yellow.
Material: Wemid (UL 94 V-0 rated).
Mounting: TS 35 DIN rail.
PE function: Yes.
End cover plate required: Yes.
Number of levels: 1.
Number of clamping points per level: 3.
Dimensions & Weight:
Width: 5.1 mm.
Height: 66.5 mm.
Depth: 36.5 mm (37 mm including DIN rail).
Net weight: 10.85 g.
Environmental Conditions:
Ambient temperature: -5°C to +40°C.
Storage temperature: -25°C to +55°C.
Continuous operating temperature: -60°C to +130°C.
Pollution severity: 3.
Surge voltage category: III.
Electrical Ratings:
Rated voltage: 800 V (DC and to adjoining terminal).
Rated impulse withstand voltage: 8 kV.
Rated short-time current: 300 A (2.5 mm²).
Volume resistance: 1.33 mΩ.
Power loss: 0.77 W.
Connection Data:
Clamping range: 0.14–4 mm².
AWG range: 26–12.
Stripping length: 10 mm.
Blade size: 0.6 x 3.5 mm.
Connection direction: Top.
Number of connections: 3.
Compatible with wire-end ferrules (DIN 46228/1 and /4).
