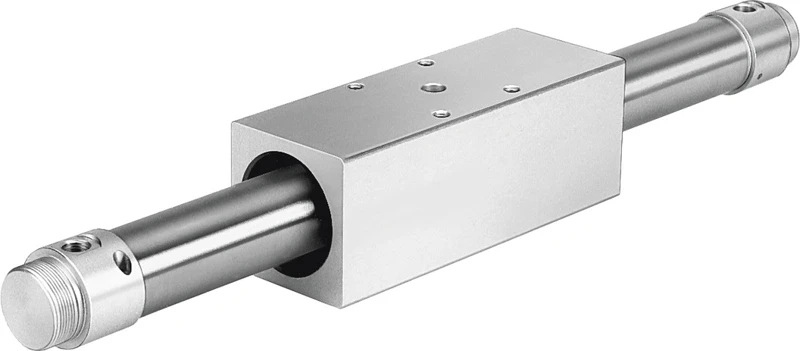

Linear drive, DGO-25- -PPV-A-B
SKU: 15224
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear drives DGO
• Piston diameter 25 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 295 N
• Stroke 10 mm - 3500 mm
• Cushioning Pneumatic cushioning, adjustable at both ends
• Position detection Via proximity switch
Buy currently uses Select Automation shop pricing and checkout.
Linear drive, metric DGO
• Positioning drive with magnetic force transmission, without a mechanical connection.
• The piston chamber and rotor are hermetically sealed.
• Magnetic power transmission
• Pressure-tight and zero leakage
• Dirt-proof and dust-proof
• Double-acting
• Piston chamber and slide are hermetically sealed
• Sustainable operation thanks to leakage reduction at sealing points
