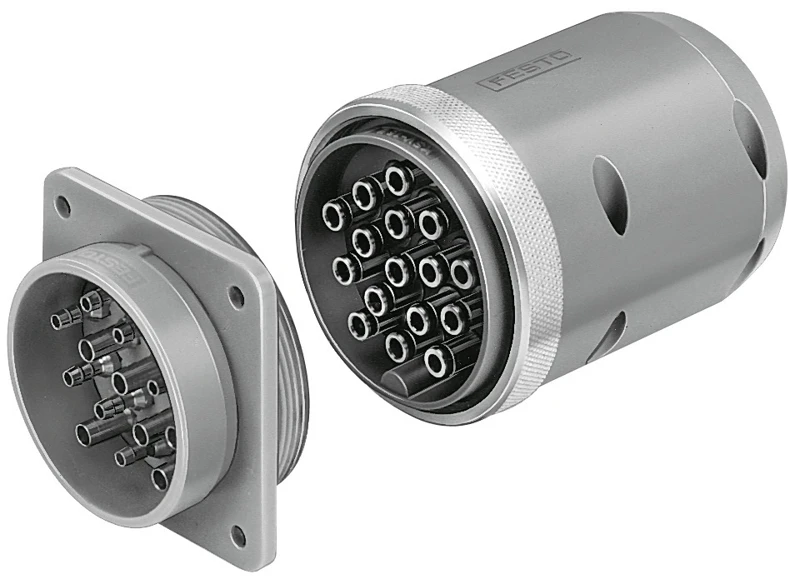

Multi-plug, KSV6-12

Specifications • Multiple connectors KSV, KDVF • Nominal size 6 mm • Operating pressure -0.95 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Media temperature -10 °C ... 60 °C • Ambient temperature -10 °C ... 60 °C • Max. number of connections 12 • Pneumatic connection PK-6 • Colour grey • Note on materials RoHS-compliant
