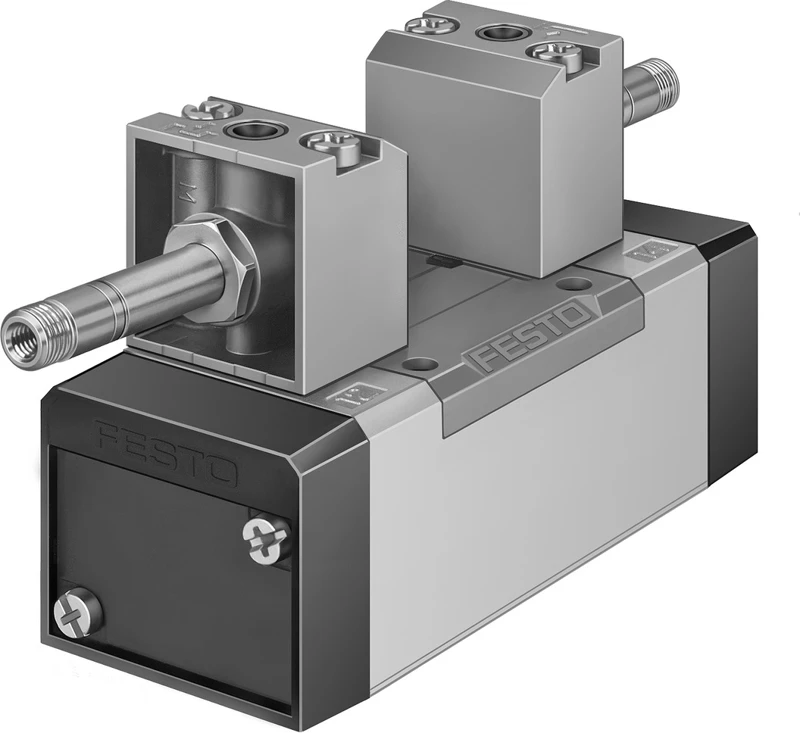

Solenoid valve, MFH-5/3B-D-1-S-C

Specifications • Standards-based valves to ISO 5599-1, solenoid coil MSF • Valve function 5/3-way, pressurised • Type of actuation Electric • Construction width 42 mm • Standard nominal flow rate (standardised to DIN 1343) 1200 l/min • Pneumatic working port Sub-base size 1 to ISO 5599-1, G1/4 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure -0.09 MPa ... 1.6 MPa • Operating pressure -0.9 bar ... 16 bar • Design Piston gate valve • Type of reset Mechanical spring
