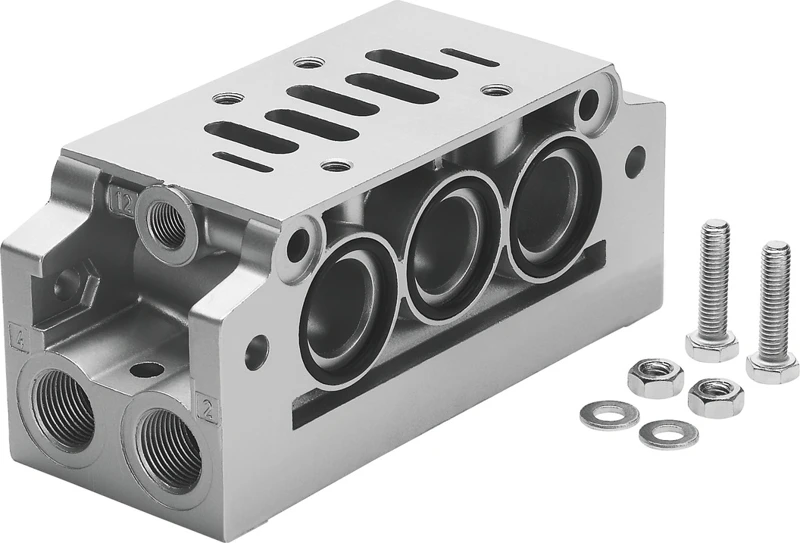

Manifold sub-base with angled connections, NAVW-1/2-3-ISO

Specifications • Standards-based valves to ISO 5599-1, manifold components • Accessories, Manifold sub-base with 90° connections NAVW • Mounting position optional • Conforms to standard ISO 5599-1 • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Ester oil < 0.1 mg/m³, to ISO 8573-1:2010 [-:-:2] • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -20 °C ... 80 °C • Media temperature -10 °C ... 60 °C • Ambient temperature -10 °C ... 60 °C • Product weight 1020 g
