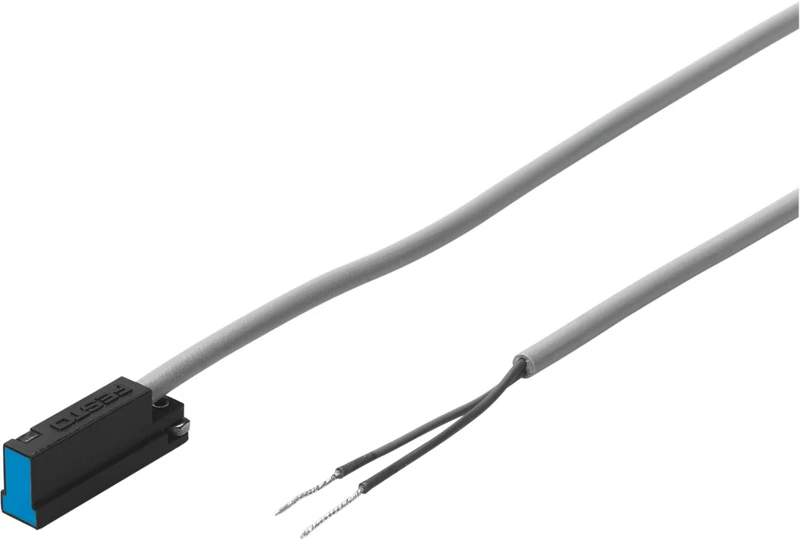

Proximity sensor, SME-8-K-LED-230
SKU: 152820
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pinch valve VZQA
• Accessories, Proximity sensor
• Operational voltage range DC 3 V - 230 V
• Switching element function N/O contact
• Switching output Contacting, bipolar
• Design For T-slot
• Conforms to standard EN 60947-5-2
• Symbol 00991624
• Approval CCC, RCM trademark
• Electrical connection 1, connection type Cable
• Electrical connection 1, connector system Open end
• Electrical connection 1, number of connections/cores 2
• Connection outlet orientation In-line
• Cable length 2.5 m
Buy currently uses Select Automation shop pricing and checkout.
Proximity switch SME-8
• Magnetic reed cylinder sensor for T-slot, can be inserted lengthways.
• Measuring principle: magnetic reed
• Insertable in the slot lengthwise
• LED switching status indication
• Cable length 0.3, 2.5, 5, 7.5, 0.2 ... 10 m
