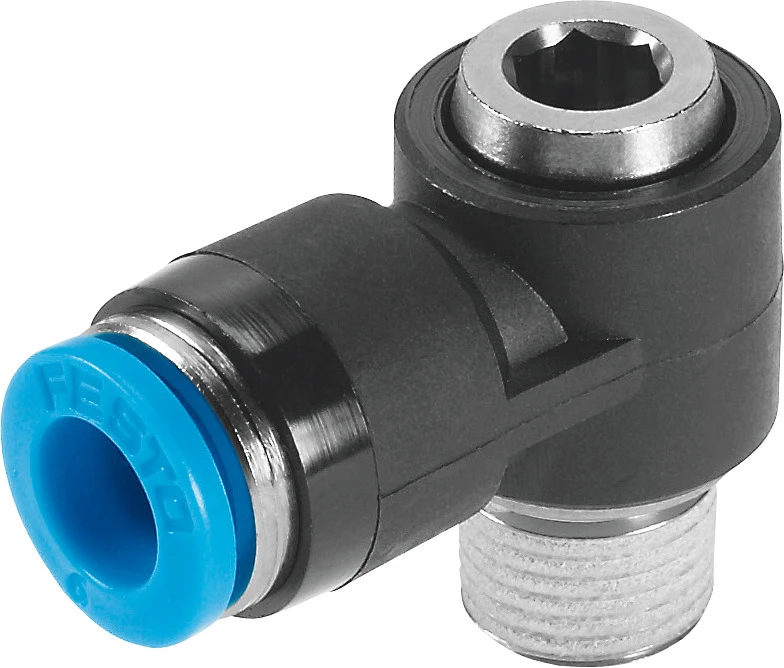

Push-in L-fitting, QSLV-1/8-8-I

Specifications • Push-in fittings QS, standard, Push-in L-fitting QSLV-...-I, Male thread with internal hexagon, rotatable • Pneumatic connection, port 1 Male thread R1/8 • Pneumatic connection, port 2 For tubing outside diameter of 8 mm • Temperature-dependent operating pressure -0.95 bar - 14 bar • Ambient temperature -10 °C - 80 °C • Size Standard • Nominal size 4.2 mm • Type of seal on screwed plug Coating • Mounting position optional • Design L-shape • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi
