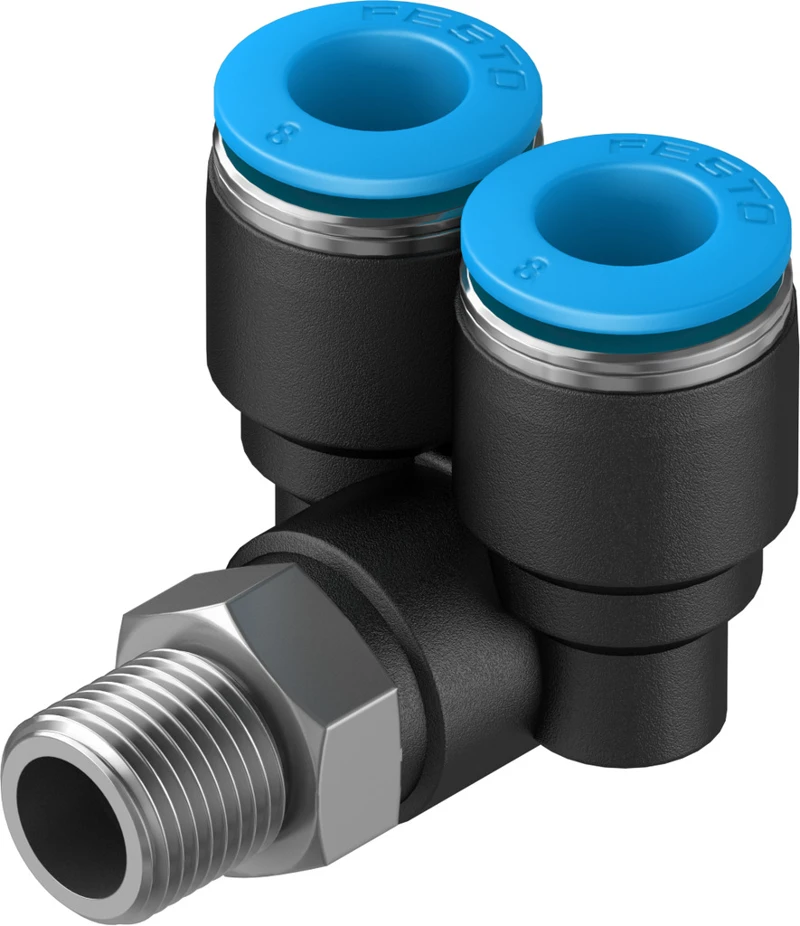

Push-in Y-fitting, Standard series, QSYL-1/8-8
SKU: 153175
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Push-in fittings QS, Standard series
• Size Standard
• Nominal size 5.7 mm
• Type of seal on screwed plug Coating
• Mounting position optional
• Design L-shape, dual, parallel
• Size of pack 1
• Design Push-pull principle
• Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 6 bar
• Operating pressure complete temperature range -13.775 psi ... 87 psi
• Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa
• Temperature-dependent operating pressure -0.95 bar ... 14 bar
• Temperature-dependent operating pressure -13.775 psi ... 203 psi
Buy currently uses Select Automation shop pricing and checkout.
Push-in fittings QS, standard series
• Simple and reliable connection and release
• Wide selection for maximum flexibility in standard applications
• Male or female thread with external or internal hexagon
• Resistant to pressure: economical for pneumatic installations up to 14 bar
