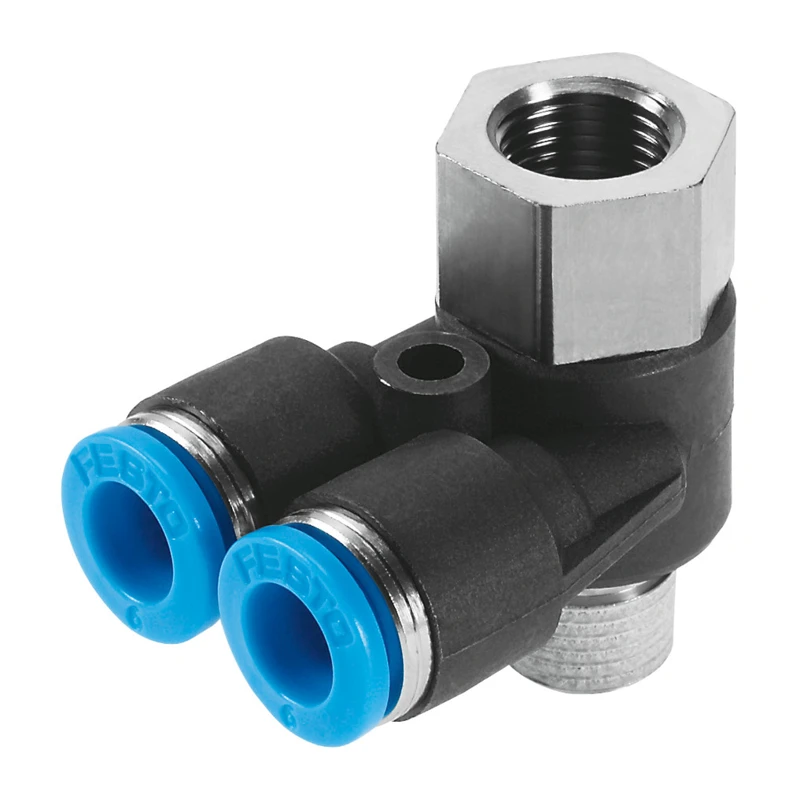

Multiple distributor, QSYTF-3/8-10-B

Specifications • Multiple distributor QSYTF • Size Standard • Nominal size 5.5 mm • Type of seal on screwed plug Coating • Mounting position optional • Design Push-pull principle • Size of pack 1 • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Number of outputs 3 • Number of supply lines 1 • Pneumatic connection, port 1 Male thread R3/8 • Pneumatic connection, port 2 Female thread G3/8, For tubing outside diameter of 10 mm
