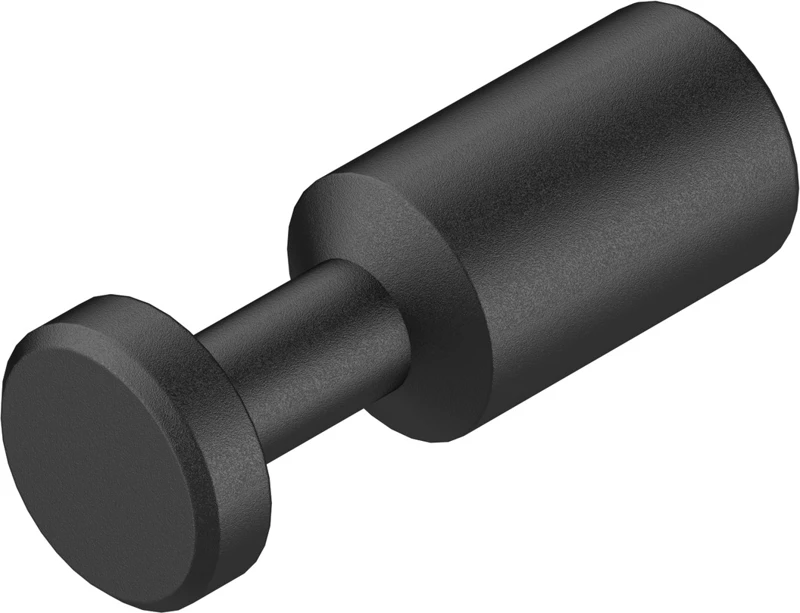

Blanking plug, QSC-16H
SKU: 153272
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Push-in fittings QS, standard, Blanking plug QSC-...H
• Pneumatic connection, port 1 Push-in sleeve Ø 16 mm
• Ambient temperature -10 °C - 80 °C
• Size Standard
• Mounting position optional
• Design Blanking plug
• Size of pack 1
• Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 6 bar
• Operating pressure complete temperature range -13.775 psi ... 87 psi
• Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa
• Temperature-dependent operating pressure -0.95 bar ... 14 bar
• Temperature-dependent operating pressure -13.775 psi ... 203 psi
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting QS
• Standard series
• Wide range of variants: wide selection for maximum flexibility in standard applications
• PBT and nickel-plated brass
• Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS
• Straight shape, L-shape, T-shape, at 45° angle, X-shape, Y-shape, push-in bulkhead connector
