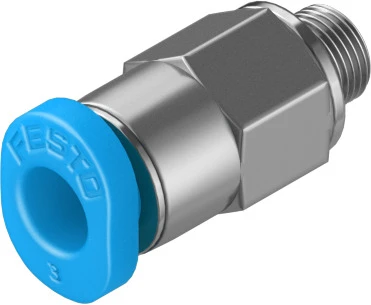

Push-in fitting, QSM-M3-3

Specifications • Mini slides DGSL • Accessories, Push-in fitting For connecting tubing with standard O.D. • Size Mini • For size 4, 6, 8 • Nominal size 0.9 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design Straight design • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
