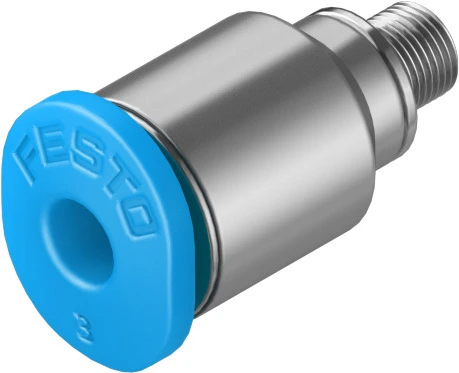

Push-in fitting, QSM-M3-3-I
SKU: 153312
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MH1
• Push-in fitting
• Size Mini
• Nominal size 1.6 mm
• Type of seal on screwed plug Sealing ring
• Mounting position optional
• Design Straight design
• Size of pack 10
• Design Push-pull principle
• Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 6 bar
• Operating pressure complete temperature range -13.775 psi ... 87 psi
• Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa
• Temperature-dependent operating pressure -0.95 bar ... 14 bar
• Temperature-dependent operating pressure -13.775 psi ... 203 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting, mini series QSM
• Mini series
• Compact for maximum component density in confined installation spaces
• PBT and nickel-plated brass
• Operating medium: compressed air, vacuum
• Straight shape, L-shape, T-shape, X-shape, Y-shape, push-in bulkhead connector
