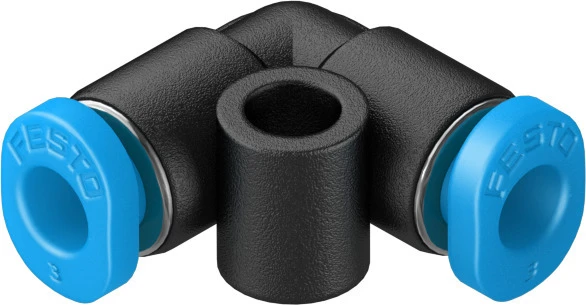

Push-in L-connector, QSML-3

Specifications • Push-in fittings QSM, mini, Push-in L-connector QSML • Size Mini • Nominal size 1.7 mm • Mounting position optional • Design L-shape • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi • Pneumatic connection, port 1 For tubing outside diameter of 3 mm • Pneumatic connection, port 2 For tubing outer diameter of 3 mm • Ambient temperature -10 °C - 80 °C
