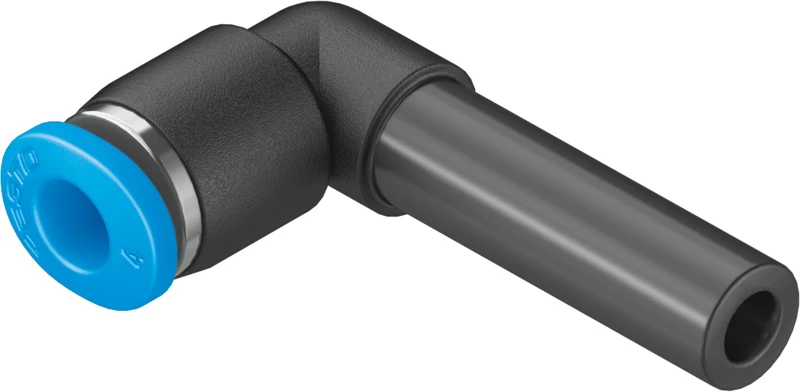

Push-in L-connector, mini series, QSML-6H-4

Specifications • Push-in fittings QSM, mini series • Size Mini • Nominal size 1.9 mm • Mounting position optional • Design L-shape • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi
