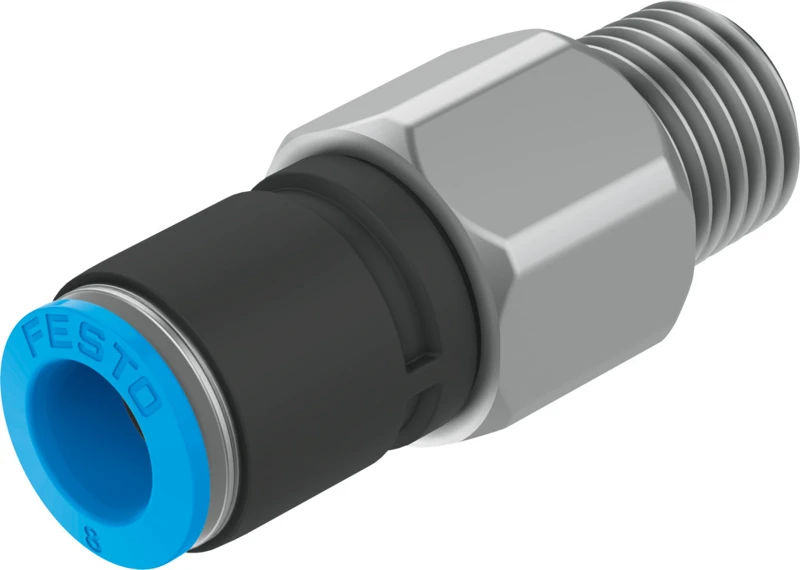

Push-in fitting, rotatable, QSR-1/4-8

Specifications • Push-in fittings, rotatable QSR, Rotatable 360°, with ball bearing , Male thread with external hex • Size Standard • Nominal size 5 mm • Type of seal on screwed plug Coating • Mounting position optional • Design Straight design • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi • Max. rotational speed 400 rpm • Pneumatic connection, port 1 Male thread R1/4 • Pneumatic connection, port 2 For tubing outside diameter of 8 mm • Ambient temperature 0 °C - 60 °C
