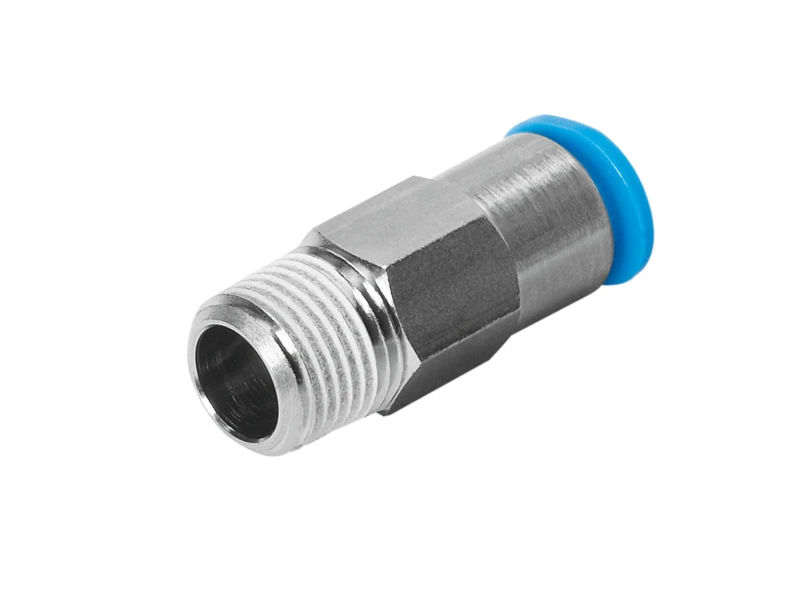

Push-in fitting, self-sealing, QSMK-1/8-6

Specifications • Push-in fitting, self-sealing QSK/QSMK, Male thread with external hex • Size Standard • Nominal size 3 mm • Tubing insertion depth 13.5 mm • Type of seal on screwed plug Coating • Mounting position optional • Design Straight design • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi • Pneumatic connection, port 1 Male thread R1/8 • Pneumatic connection, port 2 For tubing outside diameter of 6 mm • Ambient temperature -10 °C - 80 °C
