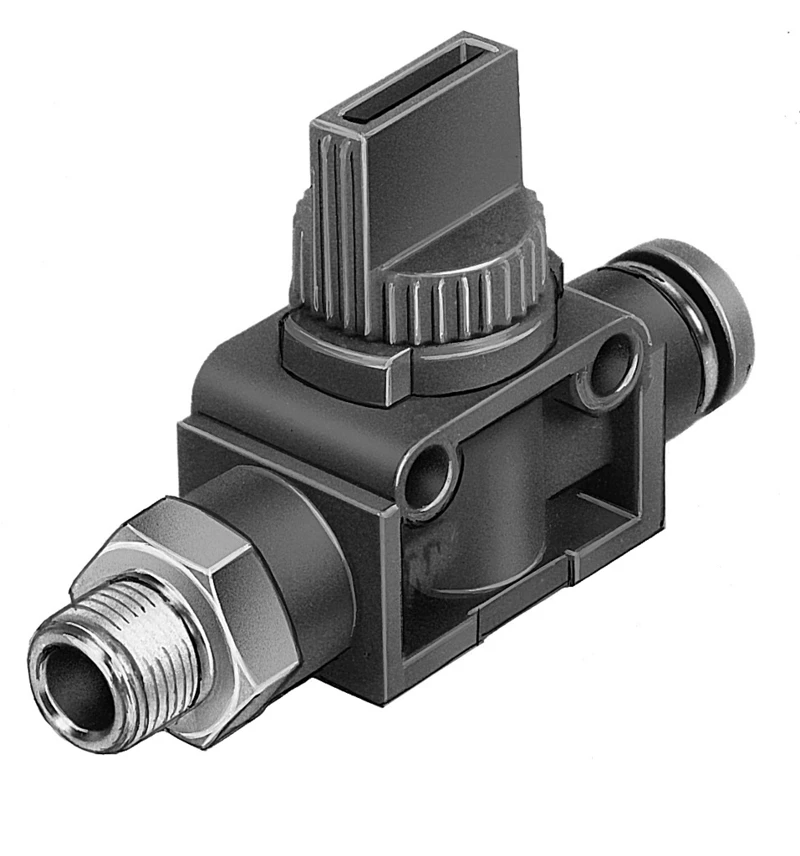

Shut-off valve, HE-2-1/2-QS-12

Specifications • Shut-off valve HE • Valve function 2/2 double solenoid • Pneumatic connection, port 1 R1/2 • Pneumatic connection, port 2 QS-12 • Type of actuation Manual • Type of mounting Either: Direct mounting via through-hole, Direct mounting via thread • Standard nominal flow rate (standardised to DIN 1343) 834.3 l/min • Nominal size 7.7 mm • Operating pressure -0.095 MPa ... 1 MPa • Operating pressure -0.95 bar ... 10 bar • Ambient temperature 0 °C ... 60 °C • Material housing PBT-reinforced • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
