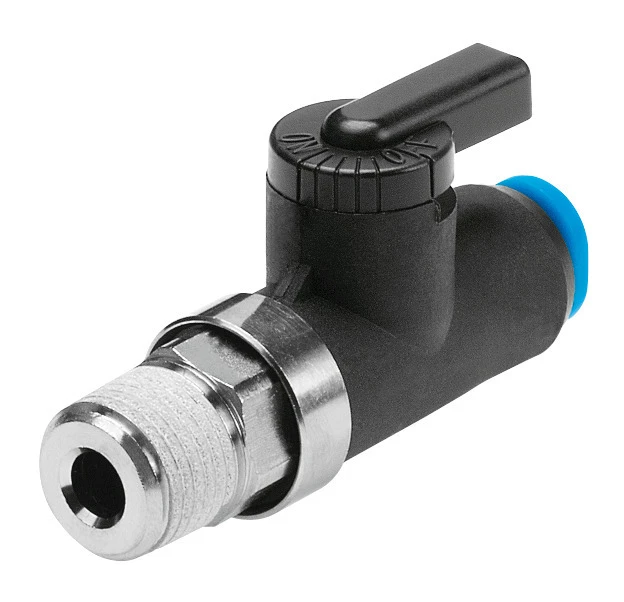

Ball valve, QH-QS-4-1/8
SKU: 153486
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves QH/QHS
• Valve function 2/2 double solenoid
• Pneumatic connection, port 1 R1/8
• Pneumatic connection, port 2 QS-4
• Type of actuation Manual
• Type of mounting Screw-in
• Standard nominal flow rate (standardised to DIN 1343) 235 l/min
• Nominal size 2.5 mm
• Operating pressure -0.1 MPa ... 1 MPa
• Operating pressure -1 bar ... 10 bar
• Ambient temperature 0 °C ... 60 °C
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Sealing principle Soft
• Design Ball valve
Buy currently uses Select Automation shop pricing and checkout.
Ball valve QH-QS, QHS-QS
• Manually operated shut-off valve in sturdy polymer design and with plug connections
• Shut-off valve, manually operated
• In-line installation, can be screwed in, bulkhead fitting
• Variants: thread at both ends, push-in connector at both ends, thread/push-in connector
