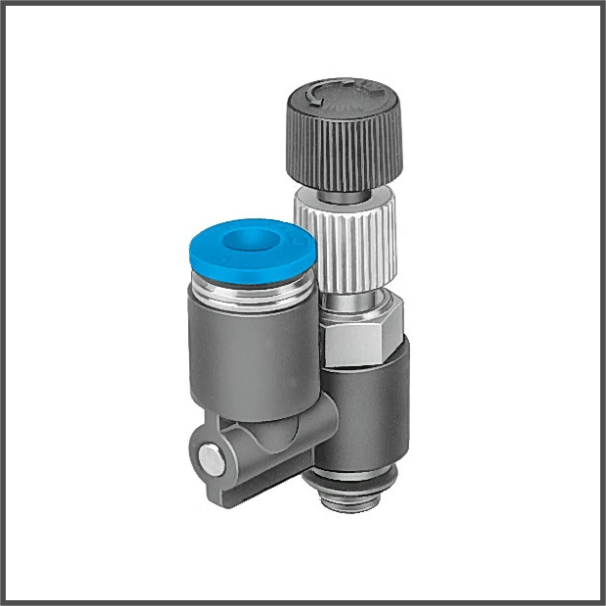

Differential pressure regulator, LRL-1/2-QS-12

Specifications • Differential pressure regulator LRL, Outlet at top • Nominal flow rate closed 730 l/min • Controller function Differential pressure constant, With return flow function • Pneumatic connection, port 1 G1/2 • Pneumatic connection, port 2 QS-12 • Type of mounting Screw-in • Nominal flow rate open 760 l/min • Nominal flow rate closed 730 l/min • Pressure regulation range 2 bar ... 6 bar • Inlet pressure 1 0 MPa ... 0.9 MPa • Inlet pressure 1 0 bar ... 9 bar • Inlet pressure 1 0 psi ... 130.5 psi • Ambient temperature 0 °C ... 60 °C • Material housing PBT-reinforced • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
