AEP 3C 1.5 End Plate
SKU: 1552620000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

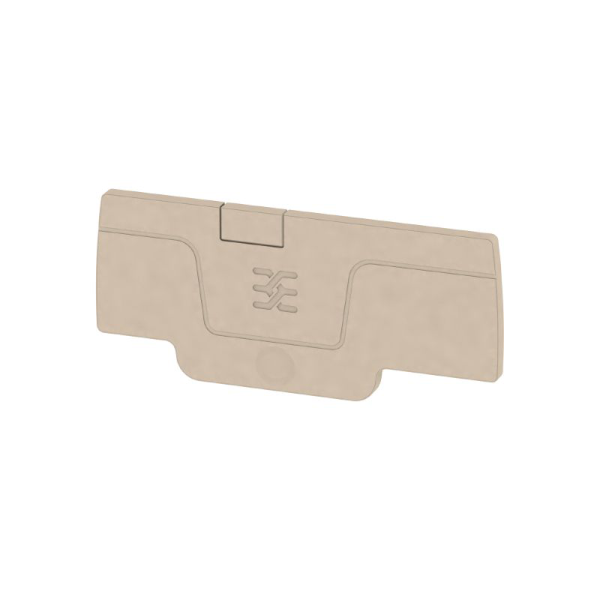

AEP 3C 1.5:
End plates are fitted to the open side of the last modular terminal before the end bracket.
The use of an end plate ensures the function of the modular terminal and the specified rated voltage.
It guarantees protection against contact with live parts and makes the final terminal fin ger-proof.
Material data:
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 26.3 mm
Height: 59.61 mm
Width: 2.1 mm
Net weight: 1.7 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -60 °C
Continuous operating temp., max.: 130 °C
