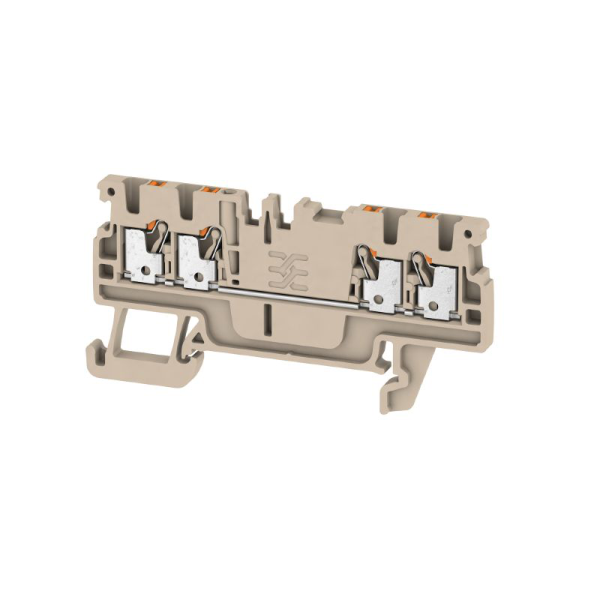

A4C 1.5A4C 1.5
SKU: 1552690000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
A4C 1.5:
To feed through power, signal, and data is the classical requirement in electrical engineering and panel building.
The insulating material, the connection system and the design of the terminal blocks are the differentiating features.
A feed-through terminal block is suitable for joining and/or connecting one or more conductors.
They could have one or more connection levels that are on the same potential or insulated against one another.
Material data:
Material: Wemid
Colour: dark beige
Colour of operational elements: orange
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 33.5 mm
Depth including DIN rail: 34 mm
Height: 67.5 mm
Net weight: 5.57 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -60 °C
Continuous operating temp., max.: 130 °C
Rating data:
Rated cross-section: 1.5 mm²
Rated voltage: 500 V
Rated DC voltage: 500 V
Rated current: 17.5 A
Current at maximum wires: 17.5 A
Standards: IEC 60947-7-1
Volume resistance according to IEC 60947-7-x: 1.83 mΩ
Rated impulse withstand voltage: 6 kV
Power loss in accordance with IEC 60947-7-x: 0.56 W
Pollution severity: 3
Surge voltage category: III
