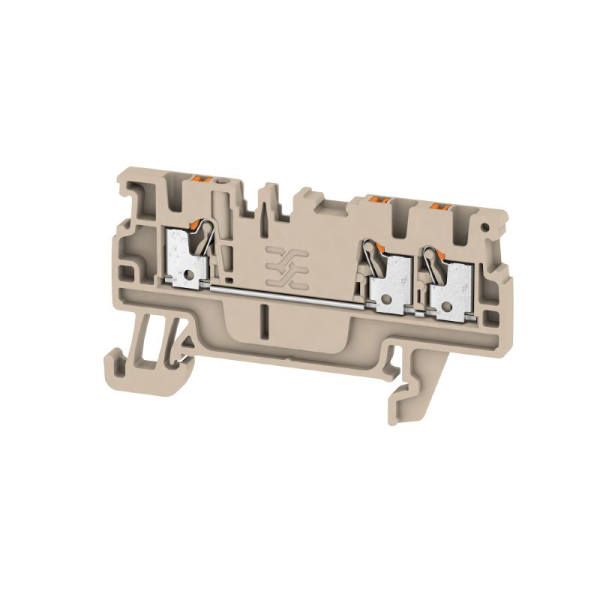

A3C 1.5
SKU: 1552740000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
A3C 1.5:
In electrical engineering and panel building, the traditional prerequisite is to pass through power, signal, and data.
The connecting mechanism, the insulating material, and the the distinctive features of the terminal blocks are their designs.
For connecting, a feed-through terminal block works well. and/or joining a couple of wires together.
They could have own one or more concurrently active connection levels potential or shielded from each other.
Material data:
Material: Wemid
Colour: dark beige
Colour of operational elements: orange
UL 94 flammability rating: V-0
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 33.5 mm
Depth including DIN rail: 34 mm
Height: 61.5 mm
Width: 3.5 mm
Net weight: 4.791 g
Temperatures:
Storage temperature: -25 °C...55 °C
Continuous operating temp., min.: -60 °C
Continuous operating temp., max.: 130 °C
Rating data:
Rated cross-section: 1.5 mm²
Rated voltage: 500 V
Rated DC voltage: 500 V
Rated current: 17.5 A
Current at maximum wires: 17.5 A
Standards: IEC 60947-7-1
Volume resistance according to IEC 60947-7-x: 1.83 mΩ
Rated impulse withstand voltage: 6 kV
Power loss in accordance with IEC 60947-7-x: 0.56 W
Pollution severity: 3
Surge voltage category: III
