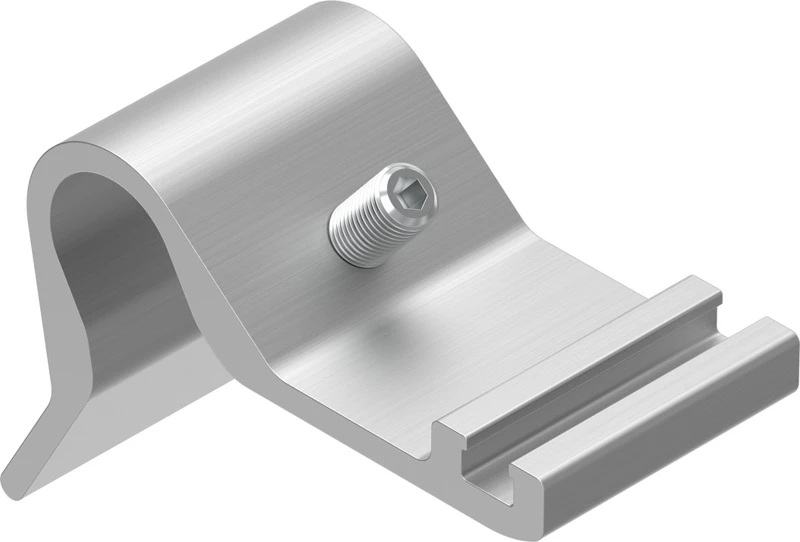

Sensor bracket, DASP-M4-160-A
SKU: 1553813
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBG, ISO 15552
• Accessories, Sensor bracket
• Size 160
• Design For tie rod
• Mounting position optional
• For piston diameter Ø160 - Ø200
• Corrosion resistance class CRC 3 - high corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Tightening torque 0.6 Nm ... 1 Nm
• Product weight 41.5 g
• Note on materials RoHS-compliant
• Material housing Wrought aluminium alloy Anodised
• Material screws High-alloy stainless steel
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBG, ISO 15552
• Standards-based cylinders to ISO 15552 (corresponds to the withdraw standards ISO 6431, DIN ISO 6431, VDMA24562, NFE49003.1 and UNI 10290)
• Sturdy tie rod design
• Double-acting
• For contactless position sensing
• Optionally with protection against rotation
• EX4: for use in potentially explosive areas
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• Three types of cushioning available: Elastic cushioning: elastic cushioning rings/plates at both ends, PPS cushioning: pneumatic cushioning, self-adjusting at both ends, PPV cushioning: pneumatic cushioning, adjustable at both ends
