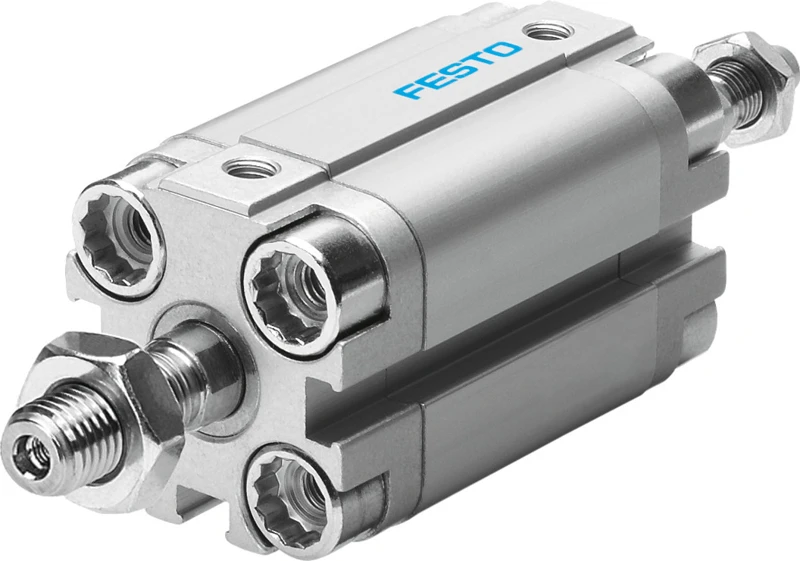

Compact cylinder, ADVU-12-...-A-P-A-S20
SKU: 156060
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Compact cylinder ADVU, Double-acting, basic version
• Stroke 1 mm ... 200 mm
• Piston diameter 12 mm
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting
• Piston-rod end Male thread
• Design Piston, Piston rod
• Position detection Via proximity switch
• Symbol 00991218
• Variants Through, hollow piston rod
• Operating pressure 0.15 MPa ... 1 MPa
• Operating pressure 1.5 bar ... 10 bar
• Operating pressure 21.75 psi ... 145 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 51 N
Buy currently uses Select Automation shop pricing and checkout.
Compact cylinder, metric ADVU, AEVU
• Single- or double-acting cylinder with wide a variety of mounting options.
• 50% less installation space than comparable standards-based cylinders to ISO 15552
• Wide range of variants for customised applications
• Piston rod with female or male thread
• For position sensing
