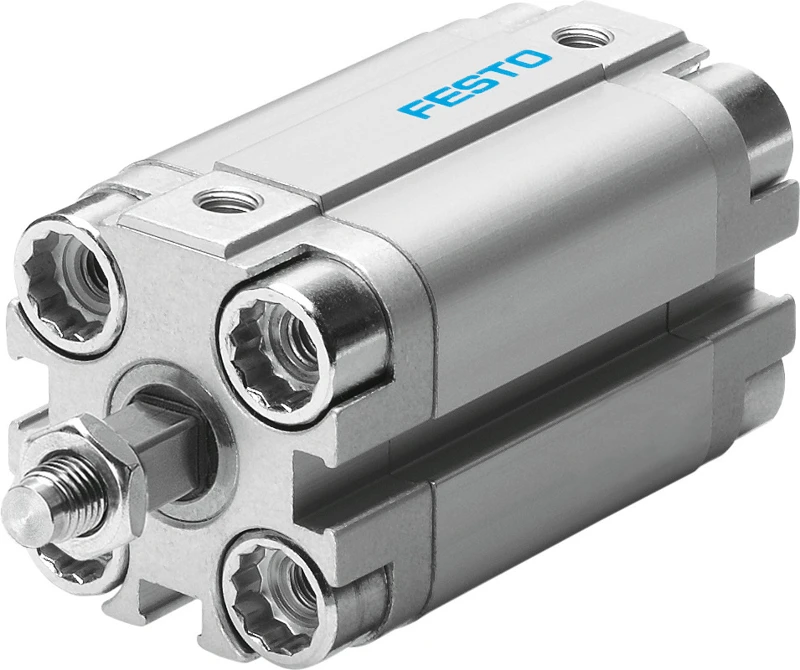

Compact cylinder, ADVULQ-16-...-A-P-A

Specifications • Compact cylinder ADVULQ, Double-acting, protected against rotation with square piston rod • Stroke 1 mm ... 200 mm • Piston diameter 16 mm • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Mode of operation Double-acting • Piston-rod end Male thread • Design Piston, Piston rod • Position detection Via proximity switch • Symbol 00991217 • Variants Piston rod at one end • Protection against torque/guide Square piston rod • Operating pressure 0.15 MPa ... 1 MPa • Operating pressure 1.5 bar ... 10 bar • Operating pressure 21.75 psi ... 145 psi • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 121 N
