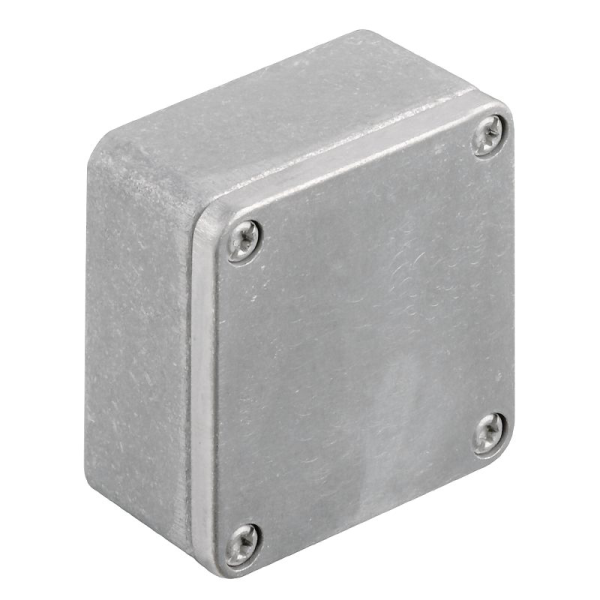

ENCLOSURE K RANGE KLIPPON K01
SKU: 1565240000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Key Features:
Significant Ingress Protection is ensured by the High Protection Class of IP66.
Able to sustain hits up to 7 Joules of force on impact.
Suitable for tough situations because to its corrosion resistance.
Choices for Mounting: Mounting feet or fixing holes allow for direct wall mounting.
The lid is fastened with captive crosshead screws made of stainless steel.
For improved impermeability, use a silicone or chloroprene-based moulded gasket for sealing.
Based on setup, the fire rating can reach up to E60.
UL, ATEX, IECEX, and other certifications indicate that the product is approved for usage in hazardous environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: Klippon K01.
Dimensions: 64 mm (Height) x 58 mm (Width) x 34 mm (Depth).
Material: Aluminium AlSi12, untreated.
Colour: Silver.
Operating Temperature: -40°C to 80°C.
Mounting Dimensions:
Width: 58 mm.
Height: 64 mm.
Net Weight: Approximately 146 grams.
Cable Glands: Various sizes available (M16, M20, etc.).
