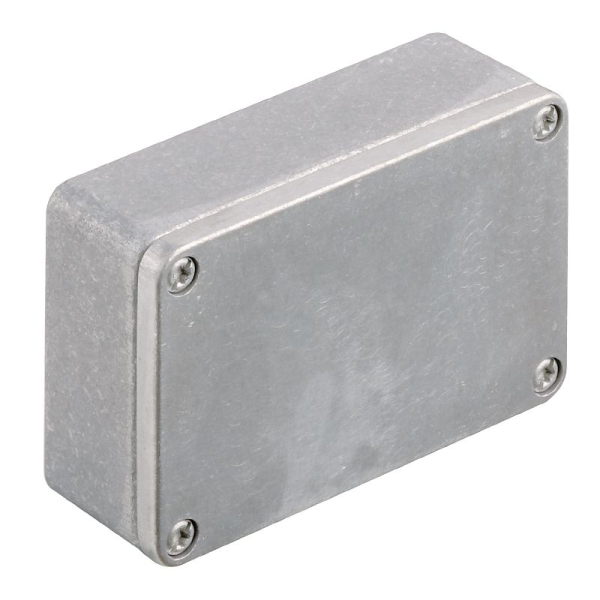

ENCLOSURE K RANGE KLIPPON K02
SKU: 1565250000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Key Features:
High Ingress Protection is ensured by the IP66 High Protection Class.
Impact Resistance: Capable of withstanding blows up to 7 Joules.
Durability: Fit for abrasive conditions.
Mounting Options: Fixing holes or mounting feet can be used for direct wall mounting.
Lid Fastening: Stainless steel captive crosshead screws are used to keep the lid in place.
Sealing: For enhanced impermeability, use a silicone or chloroprene-based moulded gasket.
Fire Rating: Depending on setup, up to an E60 fire rating is possible.
Certifications: ATEX, IECEX, UL, and other certifications for usage in hazardous locations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: Klippon K02.
Dimensions: 64 mm (Height) x 98 mm (Width) x 34 mm (Depth).
Material: Aluminium AlSi12, untreated.
Colour: Silver.
Operating Temperature: -40°C to 80°C.
Mounting Dimensions:
Width: 98 mm.
Height: 64 mm.
Net Weight: Approximately 202 grams.
Cable Glands: Various sizes available (M16, M20, etc.).
