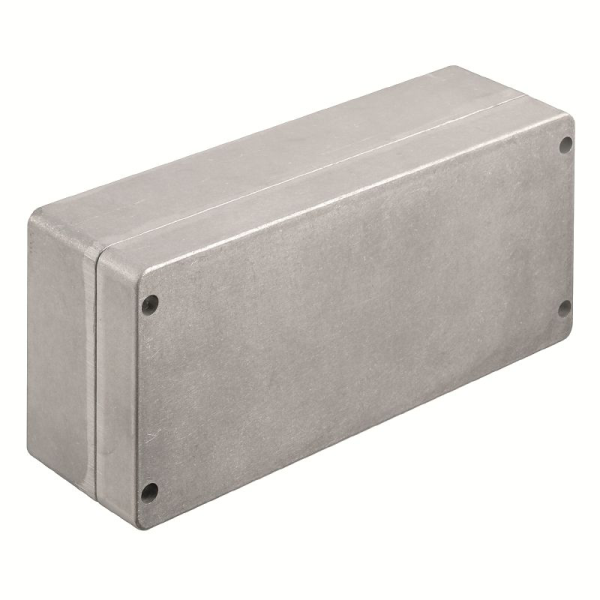

ENCLOSURE K RANGE KLIPPON K72
SKU: 1565300000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Key Features:
High ingress protection is ensured by the IP66 High Protection Class.
Impact Resistance: Has a maximum impact resistance of 7 Joules.
Corrosion resistance makes it appropriate for severe settings.
Mounting Options: Mounting feet or fixing holes can be used for direct wall mounting.
Lid Fastening: Fastened with captive crosshead screws made of stainless steel.
Sealing: For improved impermeability, use a silicone or chloroprene-based moulded gasket.
Fire Rating: Depending on the configuration, up to an E60 fire rating.
Certifications: ATEX, IECEX, UL, and other certifications for usage in hazardous environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: Klippon K72.
Dimensions: 160 mm (Height) x 560 mm (Width) x 91 mm (Depth).
Material: Aluminium AlSi12, untreated.
Colour: Silver.
Operating Temperature:
With Chloroprene Gasket: -40°C to 80°C.
With Silicone Gasket: -50°C to 135°C.
Mounting Dimensions:
Width: 560 mm.
Height: 160 mm.
Net Weight: Approximately 3,500 grams.
Cable Glands: Various sizes available (M16, M20, etc.).
