CLI C 02-3 SDR CD
SKU: 1568249999
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

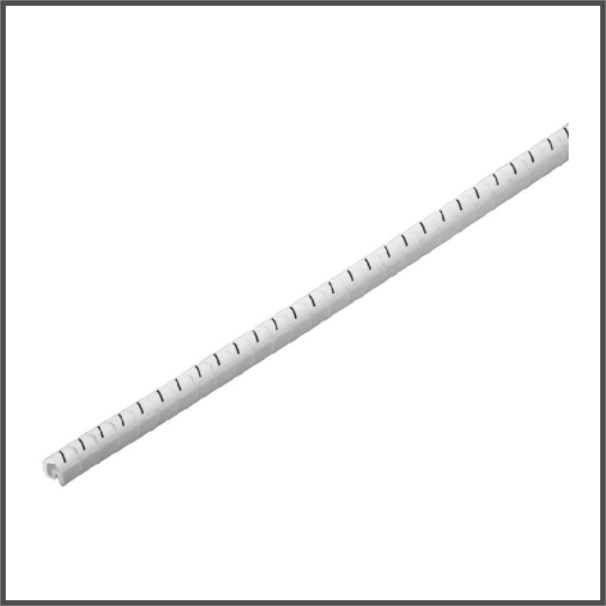

CLI C conductor markings are attached to unconnected conductors.
There are four sizes available for labeling conductor cross-sections, ranging from 0.5 mm2 to 70 mm2.
The markers are ready to use; they have already been printed.
Individual labeling can be achieved by combining the individual markers.
Closed markers are reliable and suitable for installation on disconnected connections.
A versatile bellow profile offers a broad application range.
Quick and simple to fit, requiring little work.
Labeling is made simple with matching accessories.
Permanent, superior labeling.
High contrast for best reading clarity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Cable Line, Conductor and cable markers.
Quantity: 500.
Depth: 3.5 mm.
Height: 3 mm.
Width: 3.4 mm.
Operating temperature range: -30...80 °C.
Colour: To customer specification.
Colour of printing: black.
Halogen.
Material: PVC, soft, without Cadmium.
Orientation of print: horizontal.
Printed characters: To customer specification.
Printing: Custom printing.
Printing method: Ink jet technology.
Type of printing: To customer specification.
UL 94 flammability rating: V-0.
Version: CD.
Conductor and cable markers:
Conductor O.D.: 1.3 - 3 mm.
Conductor O.D., max.: 3 mm.
Conductor O.D., min.: 1.3 mm.
Conductor cross-section, max.: 1.5 mm².
Conductor cross-section, min.: 0.2 mm².
Cross-section for connected wire: 0.2 - 1.5 mm².
