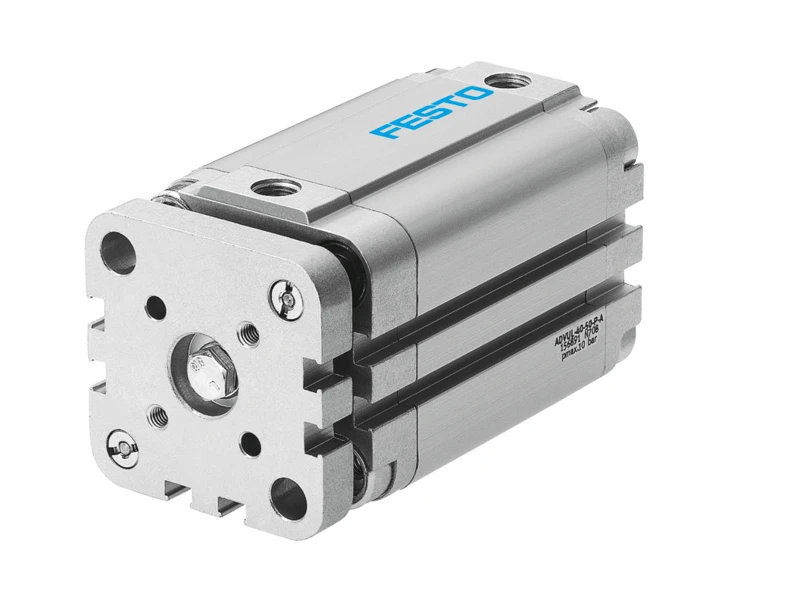

Compact cylinder, ADVUL-63-60-P-A

Specifications • Compact cylinders ADVUL • Stroke 60 mm • Piston diameter 63 mm • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Design Piston, Piston rod • Position detection Via proximity switch • Symbol 00991737 • Variants Piston rod at one end • Protection against torque/guide Guide rod with yoke • Operating pressure 0.1 MPa ... 1 MPa • Operating pressure 1 bar ... 10 bar • Mode of operation Double-acting • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1870 N
