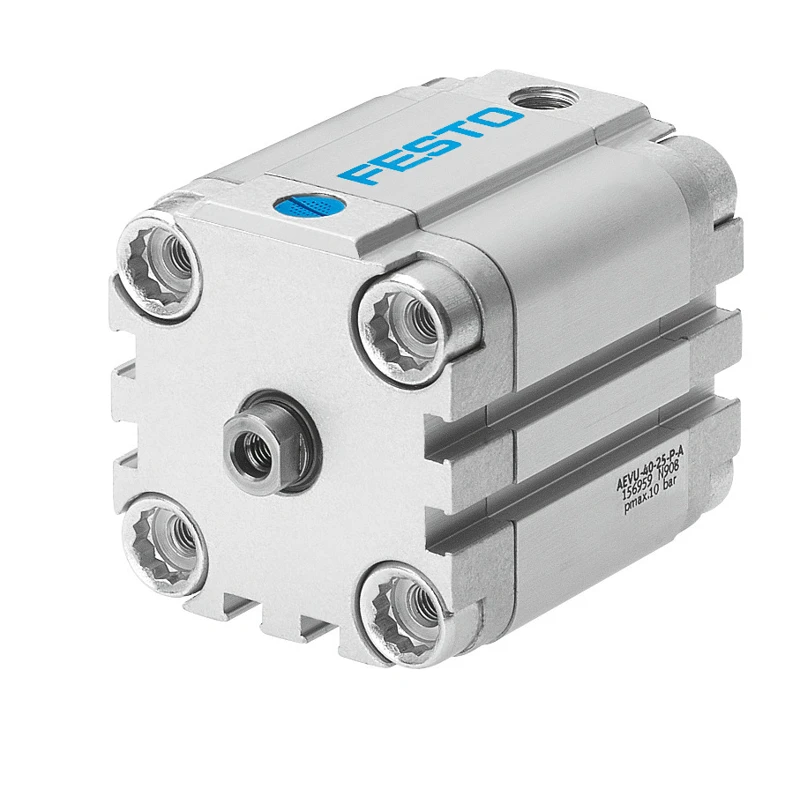

Compact cylinder, AEVU-63-15-P-A

Specifications • Compact cylinder AEVU/AEVUZ, Single-acting, basic version • Stroke 15 mm • Piston diameter 63 mm • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Mode of operation Pushing, Single-acting • Piston-rod end Female thread • Design Piston, Piston rod • Position detection Via proximity switch • Symbol 00991729 • Variants Piston rod at one end • Operating pressure 0.06 MPa ... 1 MPa • Operating pressure 0.6 bar ... 10 bar • Operating pressure 8.7 psi ... 145 psi • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1799 N
